| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Bandwidth | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| SVHC Present | |
| Slew Rate | |
| Supply Voltage | |
| Tape & Reel |
The AD8418AWBRMZ from Analog Devices, Inc. is a high-performance current sense amplifier. It is designed to accurately measure current in high common-mode voltage environments.
Key electrical specifications include a supply voltage span from 2.7V to 5.5V, a slew rate of 1V/µs, and a bandwidth of 250 kHz. The device features a low input bias current of 130 µA and an input offset voltage of 100 µV, ensuring precise measurements.

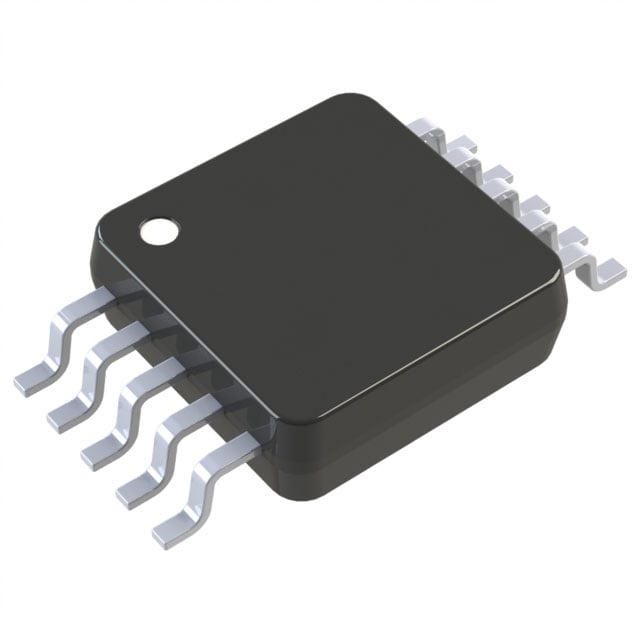

This amplifier is housed in a compact 10-MSOP surface-mount package, making it suitable for space-constrained designs. The operating temperature range is -40°C to 125°C, allowing for use in various environmental conditions.
The AD8418AWBRMZ is part of the Current RegulationManagement category, suitable for applications requiring accurate current monitoring and control.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.14 | $1.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the AD8418AWBRMZ is -40°C to 125°C.
The AD8418AWBRMZ operates with a supply voltage span from 2.7V to 5.5V.
The AD8418AWBRMZ is available in a 10-MSOP package.
The slew rate of the AD8418AWBRMZ is 1V/µs.
The -3dB bandwidth for the AD8418AWBRMZ is 250 kHz.
The input bias current for the AD8418AWBRMZ is 130 µA.
The input offset voltage for the AD8418AWBRMZ is 100 µV.
