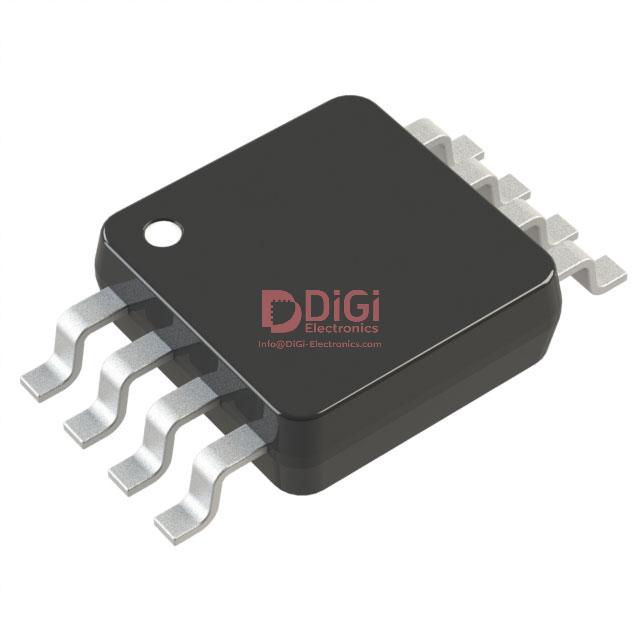

AD8221ARMZ-R7 The Analog Devices AD8221ARMZ-R7 is a single-circuit instrumentation amplifier. It operates with a supply voltage range of 4.6V to 36V and features a bandwidth of 825 kHz.
Mfr Part #:

AD8221ARMZ-R7

Available from 2 distributors
Mfr Name: AD
AD
The Analog Devices AD8221ARMZ-R7 is a single-circuit instrumentation amplifier. It operates with a supply voltage range of 4.6V to 36V and features a bandwidth of 825 kHz.
✓ Total Stock: 5,838 pcs
$ Price Range: $2.01

AD8221ARMZ-R7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,642 pcs
On Request
5642 pcs On Request 1 On Request On Request 2021+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
196 pcs
On Request
196 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD8221ARMZ-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Mounting Type
Number of Circuits
Operating Temperature
Slew Rate
View Similar Products (0)

AD8221ARMZ-R7 Description

Short technical summary and product information.

The Analog Devices AD8221ARMZ-R7 is a high-performance instrumentation amplifier designed for a wide range of applications. This single-circuit amplifier offers a precise input bias current of 500 pA and a low input offset voltage of 60 µV, ensuring accurate signal conditioning.



With a supply voltage span from 4.6V to 36V and a current consumption of 900µA, the AD8221ARMZ-R7 is suitable for various power-constrained designs. It boasts a -3dB bandwidth of 825 kHz and a slew rate of 2V/µs, enabling it to handle dynamic signals effectively.



The device is available in a compact 8-MSOP surface-mount package, facilitating integration into space-limited printed circuit boards. The operating temperature range is -40°C to 85°C, making it robust for demanding environments. This instrumentation amplifier is ideal for applications requiring precise amplification of low-level signals.

AD8221ARMZ-R7 Quick Information

Product Type: Instrumentation Amplifier
Canonical Name: Analog Devices AD8221ARMZ-R7 Instrumentation Amplifier
Subcategory: Instrumentation, Op Amps, Buffer Amps

AD8221ARMZ-R7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AD8221ARMZ-R7 Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD8221ARMZ-R7 Features

  • Single-circuit instrumentation amplifier.
  • Low input bias current of 500 pA.
  • Low input offset voltage of 60 µV.
  • Wide supply voltage range: 4.6V to 36V.
  • Compact 8-MSOP surface-mount package.

AD8221ARMZ-R7 Applications

  • Ideal for precise signal conditioning.
  • Suitable for low-power applications.
  • Robust operation in demanding environments.
  • Facilitates integration into space-limited designs.

AD8221ARMZ-R7 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the AD8221ARMZ-R7?

The operating temperature range is -40°C to 85°C.

What package type is the AD8221ARMZ-R7 available in?

The AD8221ARMZ-R7 is available in an 8-MSOP package.

What is the supply voltage span for this instrumentation amplifier?

The supply voltage span is from 4.6 V to 36 V.

What is the bandwidth of the AD8221ARMZ-R7?

The -3db bandwidth is 825 kHz.

What is the input bias current for the AD8221ARMZ-R7?

The input bias current is 500 pA.

What is the input offset voltage of the AD8221ARMZ-R7?

The input offset voltage is 60 µV.
