| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Resolution |

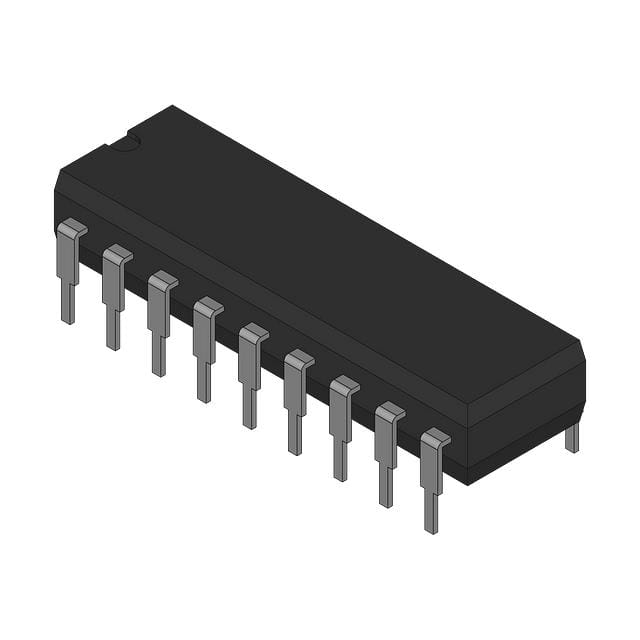

The AD7541KN is a 12-bit multiplying digital-to-analog converter (DAC) manufactured by Intersil. This device accepts digital input codes and converts them to an analog output current proportional to the reference voltage. The multiplying architecture allows the output to be a product of the digital code and the reference input. It is commonly used in applications requiring high-resolution analog signal generation, such as process control, automatic test equipment, and instrumentation.
Key specifications include a 12-bit resolution that provides 4096 discrete output levels, enabling fine-grained analog control. As a multiplying DAC, it supports both unipolar and bipolar operation depending on the external reference and output amplifier configuration. The device is RoHS3 compliant and has an MSL rating of 1, indicating unlimited floor life before soldering. It is REACH unaffected.
This component is suitable for integration into data acquisition systems where accurate digital-to-analog conversion is critical. The exact package type and supply voltage range are not specified in the available data and should be verified from the manufacturer's datasheet. The part number AD7541KN and the Digi-Key cross-reference part 2156-AD7541KN-600010-ND can be used for sourcing.
The AD7541KN has a resolution of 12 bits.
It is a Multiplying DAC (digital-to-analog converter).
The AD7541KN is listed as RoHS3 Compliant, though this is unverified.
The MSL rating is 1 (Unlimited), though this is unverified.
