LVTH162244
Texas Instruments
The Texas Instruments SN74LVTH162244 is a 16-bit buffer/driver designed for 3.3V operation with 5V tolerant inputs. It features integrated 22-ohm series resistors for signal integrity.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-06-29 21:33:16 | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Industrial Grade | |
| Military Grade |
The AD746SQ/883B is a dual precision BIFET operational amplifier manufactured by AD. It offers a gain bandwidth product of 10 MHz and operates with supply voltages ranging from 9.6V to 36V. This device is designed for precision applications, providing excellent DC characteristics and fast settling times.
The operational amplifier features a low supply current of 8 mA and a high common-mode rejection ratio (CMRR) of 88 dB. The input impedance is 250 GΩ, and the input capacitance is 5.5 pF. It is specified for a wide operating temperature range from -55°C to 125°C.

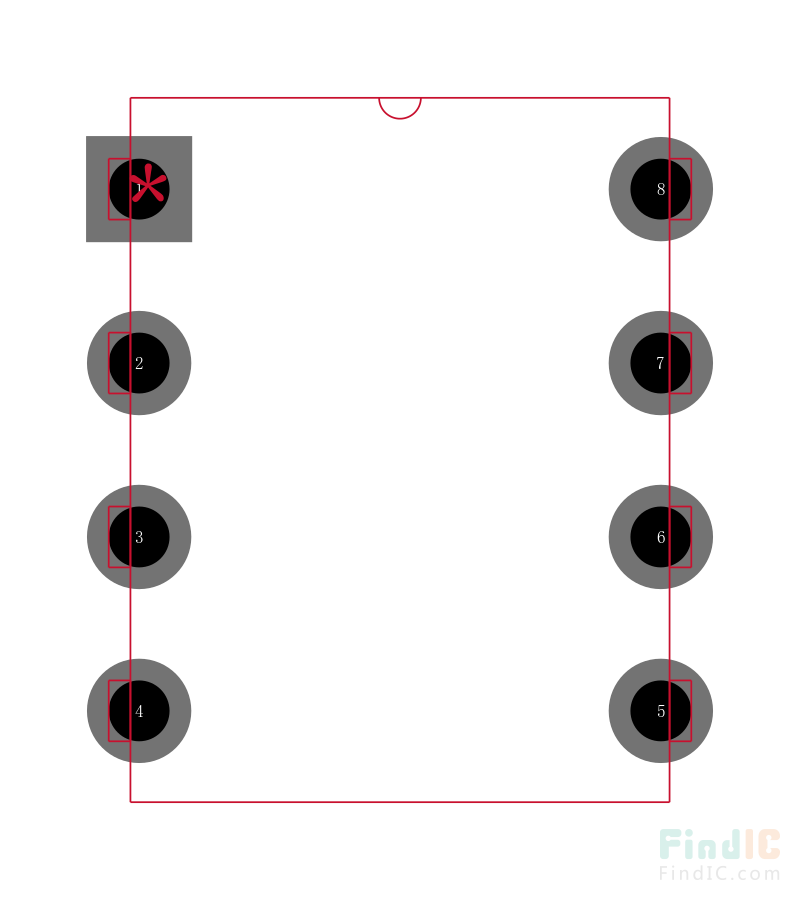

Packaged in a CDIP-8 through-hole form factor, the AD746SQ/883B has dimensions of 10.29 mm in length, 7.87 mm in width, and 3.56 mm in height. It is also noted as being military grade.
This component is suitable for various analog signal processing applications where high precision and stable performance are required over a broad temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 9.6V to 36V.
It is available in a CDIP-8 package.
The operating temperature range is -55°C to 125°C.
It has 2 channels.
The gain bandwidth product is 10 MHz.
Yes, it is military grade.
The input impedance is 250 GΩ.
