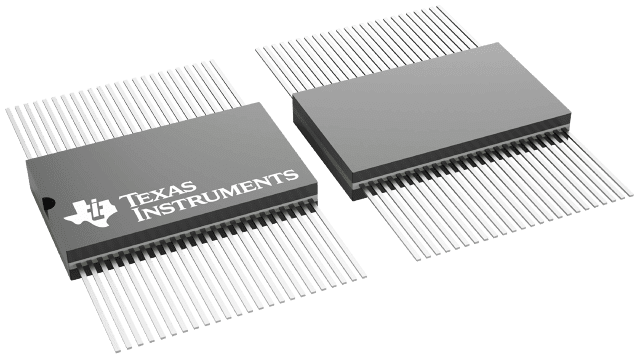

The SN74LVTH162244 from Texas Instruments is a 16-bit buffer and line driver belonging to the Widebus family. It is designed for low-voltage 3.3V VCC operation while supporting a TTL interface to a 5V system environment. This device can be configured as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
Key features include integrated 22-ohm series resistors in the output ports to minimize overshoot and undershoot, and bus-hold circuitry on data inputs to eliminate the need for external pullup/pulldown resistors. It supports mixed-mode signal operation and unregulated battery operation down to 2.7V.
The SN74LVTH162244 is available in a WD package and operates across a temperature range of -55°C to 125°C. It offers 3-state outputs with symmetrical active-low output-enable (OE) inputs. The flow-through architecture optimizes PCB layout, and distributed VCC and GND pins minimize high-speed switching noise. ESD protection exceeds 2000V for the human-body model and 200V for the machine model.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SN74LVTH162244 operates at 3.3V VCC and supports 5V input and output voltages.
The SN74LVTH162244 has an operating temperature range of -55°C to 125°C.
Yes, the SN74LVTH162244 has equivalent 22-ohm series resistors in its output ports.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
