AD6655BCPZ-105 The Analog Devices Inc. AD6655BCPZ-105 is an IF Diversity Receiver with 14-bit resolution and a 105MSPS sample rate. It operates at 450MHz and is available in a 64-LFCSP-VQ package.
Mfr Part #:

AD6655BCPZ-105

Available from 1 distributors
Mfr Name: AD
AD
The Analog Devices Inc. AD6655BCPZ-105 is an IF Diversity Receiver with 14-bit resolution and a 105MSPS sample rate. It operates at 450MHz and is available in a 64-LFCSP-VQ package.
✓ Total Stock: 10,000 pcs
$ Price Range: $7.31

AD6655BCPZ-105 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 0851/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AD6655BCPZ-105 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Frequency
Function
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
RF Type
Supplier Device Package
View Similar Products (0)

AD6655BCPZ-105 Description

Short technical summary and product information.

The Analog Devices Inc. AD6655BCPZ-105 is an integrated circuit designed as an IF Diversity Receiver. It features a 14-bit analog-to-digital converter (ADC) with a maximum sample rate of 105MSPS.



This component operates at a frequency of 450MHz and supports various RF types including Cellular, CDMA2000, EDGE, GSM, and W-CDMA. A notable secondary attribute is its 32-Bit Numerically Controlled Oscillator.

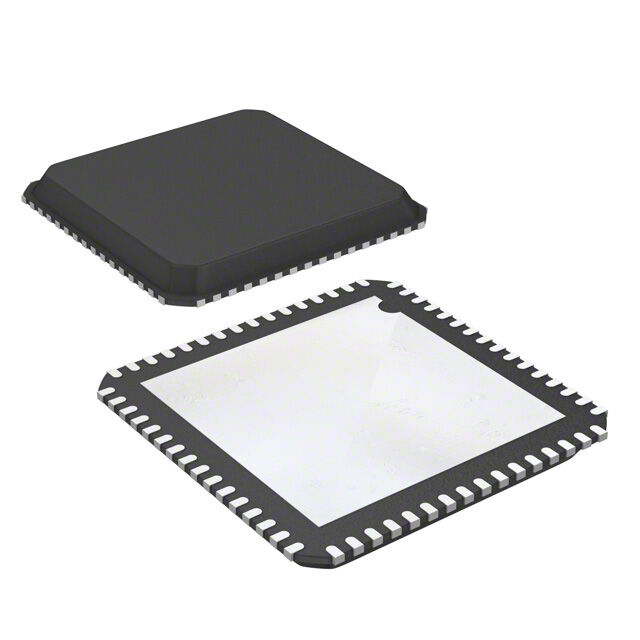

The AD6655BCPZ-105 is designed for surface mounting and comes in a 64-VFQFN Exposed Pad, CSP package, specifically the 64-LFCSP-VQ (9x9) variant. The part status is listed as Obsolete.



This device is suitable for applications requiring high-speed signal reception and processing in wireless communication systems.

AD6655BCPZ-105 Quick Information

Product Type: Analog to Digital Converter (ADC)
Series: AD6655
Canonical Name: Analog Devices Inc. AD6655BCPZ-105 IF Diversity Receiver
Subcategory: Analog to Digital Converters (ADC)

AD6655BCPZ-105 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AD6655BCPZ-105 Estimated Pricing

Qty Low High
1+ $7.31 $7.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

AD6655BCPZ-105 Features

  • 14-bit resolution analog-to-digital converter.
  • 105MSPS maximum sample rate.
  • 450MHz operating frequency.
  • IF Diversity Receiver function.
  • Surface mount 64-LFCSP-VQ package.

AD6655BCPZ-105 Applications

  • Suitable for cellular communication systems.
  • Used in CDMA2000 applications.
  • Applicable for EDGE and GSM systems.
  • Designed for W-CDMA applications.

AD6655BCPZ-105 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the AD6655BCPZ-105?

The AD6655BCPZ-105 has a resolution of 14-Bit.

What is the sample rate for the AD6655BCPZ-105?

The AD6655BCPZ-105 has a sample rate of 105MSPS.

What is the operating frequency of the AD6655BCPZ-105?

The operating frequency is 450MHz.

What type of receiver is the AD6655BCPZ-105?

It is an IF Diversity Receiver.

What package is the AD6655BCPZ-105 supplied in?

The supplier device package is 64-LFCSP-VQ (9x9).

How is the AD6655BCPZ-105 mounted?

It is a Surface Mount device.

What is the RoHS status of the AD6655BCPZ-105?

The RoHS status is RoHS3 Compliant.
