| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

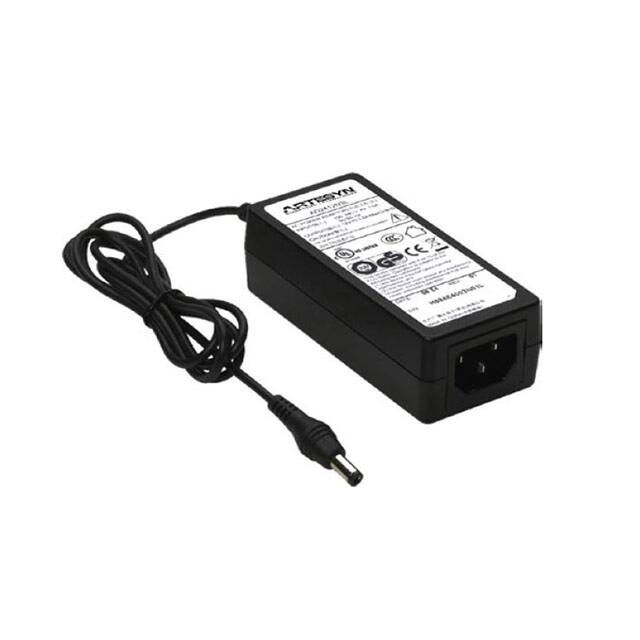

The Artesyn Embedded Power AD2412N3L-VI is a freestanding external 24-watt AC-DC power adapter designed for a wide variety of portable and desktop applications. It utilizes high-efficiency switch-mode technology, achieving 87% typical efficiency and complying with European CoC v.5 Tier 2 and US Department of Energy Level VI efficiency standards.
This adapter provides a fully regulated 12VDC output with a maximum power of 24W. It features universal AC input (90-264 VAC) and includes overcurrent, overvoltage, and thermal protection with latching type reset. The unit is equipped with an IEC320 C14 input receptacle and a DC output cable with a 2.5mm I.D. / 5.5mm O.D. center positive plug.
Designed for reliability, the AD2412N3L-VI has a calculated MTBF of over 850,000 hours. It operates within an ambient temperature range of -20 °C to +50 °C and meets stringent EMI/RFI standards, including FCC Part 15 Class B and EN55022 Class B. Safety certifications include UL 60950-1, CSA-C22.2 No.60950, and TUV EN/IEC 62368, along with CE and UKCA marks.
90 to 264 VAC.
12 VDC at 24 W maximum.
-20°C to +50°C ambient.
87% typical, compliant with European CoC v.5 Tier 2 and US DoE Level VI.
UL 60950-1, CSA C22.2 No.60950, TUV EN/IEC 62368, CE, CCC, CB, UKCA.
Desktop Class I enclosure.
Barrel plug, 2.5mm I.D. x 5.5mm O.D., positive center.
