| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

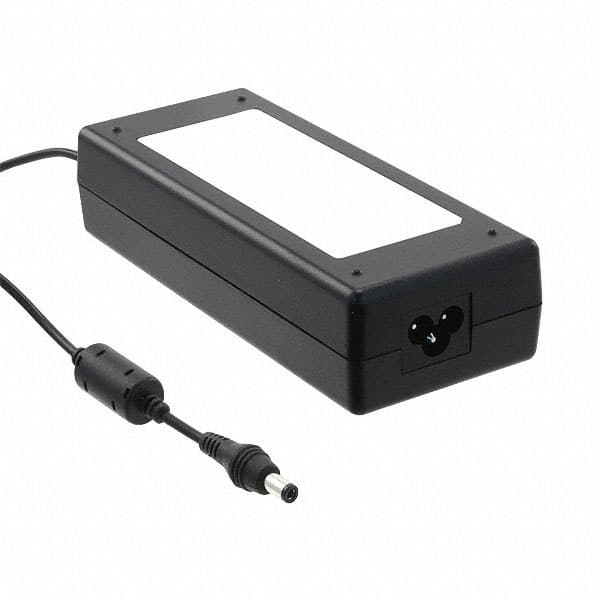

The Artesyn Embedded Power AD10048P3L-001 is a 100-watt AC/DC desktop power adapter designed for business-critical continuity. It accepts a universal input voltage range of 90-264 Vac and provides a fully regulated 48Vdc output at 2.08A.
Key features include active power factor correction, Level V efficiency, and compliance with EN61000-3-2. The adapter offers comprehensive protection, including overcurrent, overvoltage, and thermal protection. It is designed to meet stringent EMI/RFI standards, including FCC Part 15, Subpart B Class B and EN55022 Class-B.
The unit utilizes an IEC320 C6 AC input receptacle and comes with a 1.50m cord. The DC output is delivered via a 2.5mm center pin barrel plug. Its compact dimensions are 156.0mm x 65.0mm x 37.2mm. The operating temperature range is 0°C to 45°C ambient.
Safety certifications include UL, CSA, NEMKO, and CB reports, making it suitable for international applications. The high MTBF of over 300,000 hours indicates reliability for demanding environments.
90-264 Vac.
48 Vdc at 2.08 A.
0°C to 45°C ambient.
UL 60950-1, CSA C22.2 no.60950-1, NEMKO EN/IEC60950-1, and CB Certificate.
Overvoltage protection (53-60V latching), overcurrent protection (110-120% auto-recover), and thermal protection (105-120°C latching).
Desktop (Class I).
90% typical.
