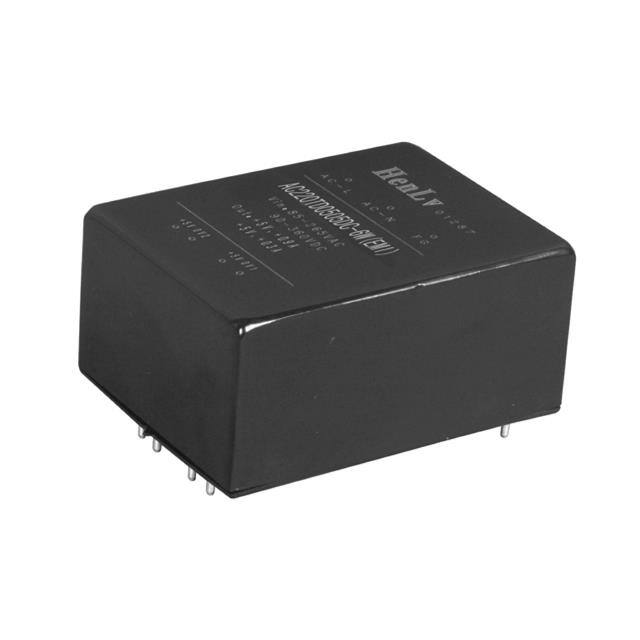

This AC DC converter from HenLv Power, model AC220TD0512DC-6W, is designed for reliable power conversion in various applications. It accepts a broad input voltage range of 85-265 VAC or 120-430 VDC, making it versatile for different power grids.
The converter provides dual outputs, specifically +5V and ±12V, with a maximum output current of 15mA for the 5V output and 5mA for the ±12V outputs. It boasts an efficiency of 80% and offers 3000 VDC isolation voltage for enhanced safety and performance.
Packaged in a DIP (Dual In-line Package) format, this module is suitable for through-hole mounting. It operates within a wide temperature range of -40℃ to +85℃, ensuring functionality in demanding environments. The unit also includes built-in protection features such as overcurrent and short-circuit protection.
Key features include its compact dimensions of 40.0mm x 25.0mm x 20.8mm, making it suitable for space-constrained designs. It complies with RoHS3 standards and has an MSL rating of 1.
85-265 VAC or 120-430 VDC.
+5 VDC and ±12 VDC.
-40°C to +85°C.
DIP (Dual In-line Package) with through-hole mounting.
3000 VDC.
80%.
40.0mm x 25.0mm x 20.8mm.
