| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Form | |
| Contact Plating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Product Type | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

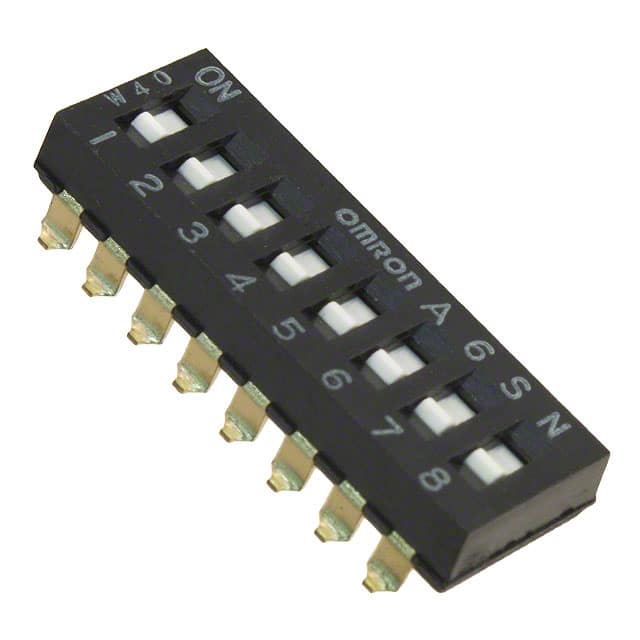

The Omron A6SN-8101 is a surface-mount DIP switch designed for various electronic applications. It features 8 positions with a Single Pole Single Throw (SPST) contact form and a standard slide actuator.
This switch operates with a current rating of 25mA and a voltage rating of 24VDC. The terminal pitch is 2.54mm (0.100"), and the height above the board is 4.45mm. The operating temperature range is from -30°C to 85°C.
The A6SN-8101 is constructed for surface mounting with gull wing termination style. It is classified as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1.
This component is suitable for applications requiring reliable and compact switch solutions for setting configurations or logic states.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage of the A6SN-8101 is 24VDC.
The A6SN-8101 has 8 positions.
The contact form of the A6SN-8101 is SPST.
The current rating of the A6SN-8101 is 25mA.
The operating temperature range is -30°C to 85°C.
