| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

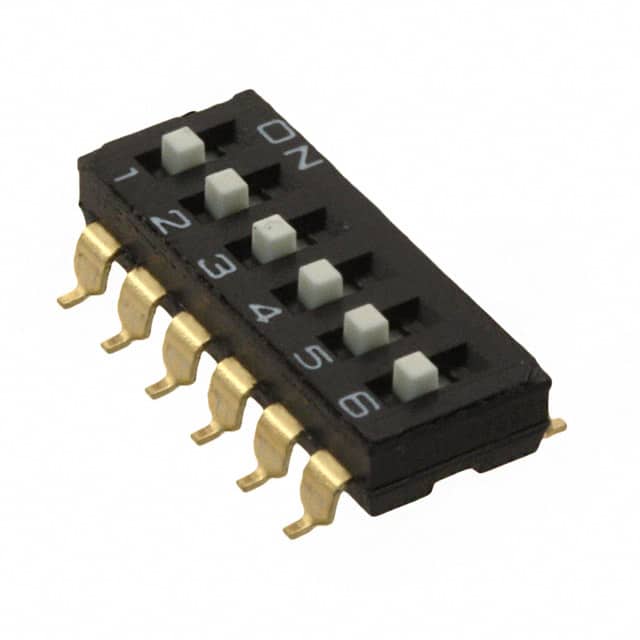

The Omron A6S-6104-H is a single-pole, single-throw (SPST) DIP switch. It features a standard slide actuator and gull wing termination style, suitable for surface mount applications.
This switch is rated for a maximum operating voltage of 24VDC and a current carrying capacity of 25mA. The contact finish is gold, ensuring reliable connections. It has 6 positions and a pitch of 2.54mm (0.100"). The operating temperature range is from -20°C to 70°C.
The component has a height above board of 4.40mm. It is not washable. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. The REACH status is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the A6S-6104-H is 24VDC.
The operating temperature range is -20°C to 70°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
