| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Current Rating (Amps) | |
| Failure Rate | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

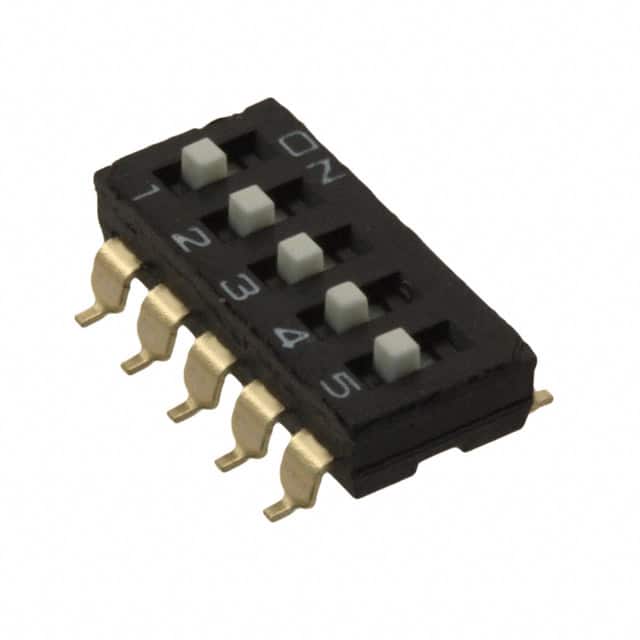

The Omron A6S-5104-H is a 5-position DIP switch from the A6S-H series. It features a low-profile slide actuator and is designed for surface mount (SMD/SMT) applications. The switch has a terminal pitch of 2.54mm and utilizes gold-plated contacts for reliable performance.
This SPST (Single Pole Single Throw) switch is rated for 24VDC and a current of 25mA. It operates within a temperature range of -20°C to 70°C. The termination style is solder pad, and the actuator level is raised. The package type is Tube, with a standard pack quantity of 35.
Designed for various electronic applications, this DIP switch offers a compact solution for setting configurations or controls on printed circuit boards. Its surface-mount capability makes it suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Omron A6S-5104-H DIP switch has 5 positions.
The A6S-5104-H DIP switch features a slide actuator.
The Omron A6S-5104-H DIP switch is designed for surface mount (SMD/SMT) applications.
The current rating for the A6S-5104-H is 25mA.
The operating voltage for the A6S-5104-H DIP switch is 24VDC.
The Omron A6S-5104-H operates within a temperature range of -20°C to 70°C.
