| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable | |
| Weight |

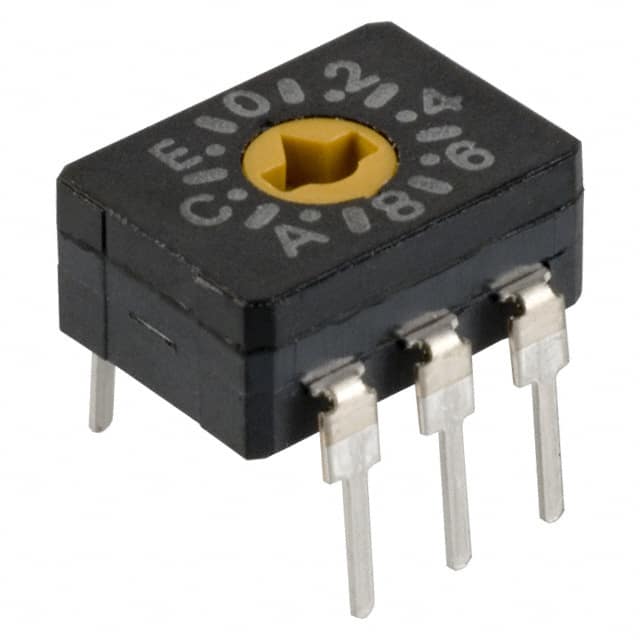

The Omron A6C-16R(N) is an internally sealed, DIL-IC type rotary DIP switch. It utilizes a precise rotary cam and contact driving mechanism for compact, high-density mounting. This model offers 16 switching positions with a Hexadecimal output code.
Designed for reliability, the A6C-16R(N) features insert-molded terminals and an O-ring sealed rotor, providing a sealed structure equivalent to IP64 (IEC-60529). This sealing prevents flux penetration and ensures high contact reliability, even in dusty environments. The switch operates within an ambient temperature range of -20°C to 70°C and has a voltage rating of 30VDC with a current rating of 100mA.
Mounting is achieved via through-hole termination with PC pins. The switch is washable and has a durability of 2,000 electrical steps. Its compact design and sealed structure make it suitable for various electronic applications where reliable switching is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The A6C-16R(N) has 16 switching positions.
The A6C-16R(N) provides a Hexadecimal output code.
The switch is rated for a maximum of 0.1A (100mA) at 30VDC.
The ambient operating temperature range is -20°C to 70°C.
Yes, it features IP64 sealing, making it dust-tight and water-resistant.
