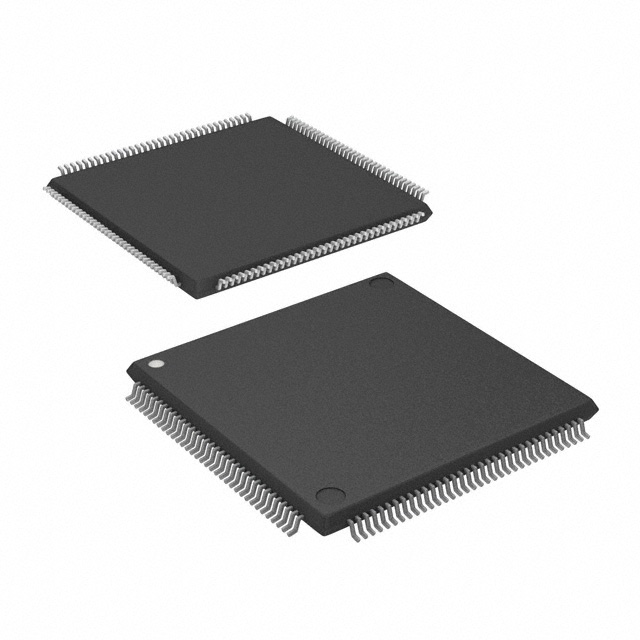

A2F060M3E-TQG144 SmartFusion cSoC integrating a 80MHz ARM Cortex-M3 microcontroller subsystem with a ProASIC3 FPGA fabric. Housed in a 144-TQFP package.
Mfr Part #:

A2F060M3E-TQG144

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
SmartFusion cSoC integrating a 80MHz ARM Cortex-M3 microcontroller subsystem with a ProASIC3 FPGA fabric. Housed in a 144-TQFP package.
✓ Total Stock: 520 pcs

A2F060M3E-TQG144 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
520 pcs
On Request
520 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A2F060M3E-TQG144 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Connectivity
Core Processor
Flash Size
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Peripherals
Primary Attributes
RAM Size
SVHC Present
Speed
Supplier Device Package
View Similar Products (0)

A2F060M3E-TQG144 Description

Short technical summary and product information.

The Microsemi A2F060M3E-TQG144 is a SmartFusion Customizable System-on-Chip (cSoC) that combines a hard ARM Cortex-M3 processor with a ProASIC3 FPGA fabric on a single die. The microcontroller subsystem operates at 80MHz and includes 128KB of embedded nonvolatile flash memory and 16KB of high-speed SRAM.



Connectivity options include EBI/EMI, I²C, SPI, and UART/USART interfaces. The device also features a DMA controller, power-on reset, and watchdog timer peripherals. The FPGA fabric provides 60K gates and 1536 D-flip-flops for custom logic implementation.



The device is supplied in a 144-TQFP (20x20mm) package and supports surface mount assembly. It is rated for an operating temperature range of 0°C to 85°C.

A2F060M3E-TQG144 Quick Information

Product Type: System on Chip (SoC)
Series: ProASIC3
Canonical Name: A2F060M3E-TQG144 SmartFusion Customizable System-on-Chip (cSoC)
Subcategory: FPGA SoC

A2F060M3E-TQG144 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

A2F060M3E-TQG144 Features

  • ARM Cortex-M3 processor at 80MHz.
  • 128KB flash and 16KB RAM memory.
  • ProASIC3 FPGA with 60K gates.
  • 144-TQFP surface mount package.
  • Operating temperature 0°C to 85°C.

A2F060M3E-TQG144 Applications

  • Ideal for embedded control systems.
  • Used in industrial automation applications.
  • Suitable for custom logic integration.
  • Perfect for low-power SoC designs.

A2F060M3E-TQG144 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the A2F060M3E-TQG144?

It features an ARM Cortex-M3 processor.

What is the clock speed of this device?

The core operates at 80MHz.

How much flash memory does it have?

It includes 128KB of embedded nonvolatile flash memory.

What is the operating temperature range?

The device is rated for 0°C to 85°C (TJ).

What package is the A2F060M3E-TQG144 available in?

It comes in a 144-TQFP (20x20mm) package.

What FPGA fabric is integrated?

It integrates a ProASIC3 FPGA with 60K gates and 1536 D-flip-flops.

What connectivity interfaces are supported?

It supports EBI/EMI, I²C, SPI, and UART/USART interfaces.
