Mfr Part #:

A-HDF 26 AA-WP

Name: A-HDF 26 AA-WP
Brand: Assmann WSW Components
SKU: A-HDF 26 AA-WP

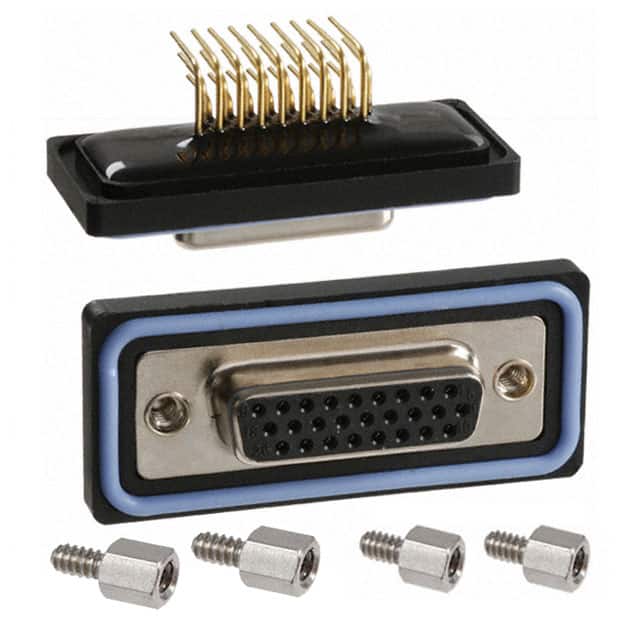

CONN D-SUB HD RCPT 26P R/A SLDR

Stock on Request

A-HDF 26 AA-WP Description

Short technical summary and product information.

CONN D-SUB HD RCPT 26P R/A SLDR

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	D-Sub Connector Assemblies
Manufacturer Name	Assmann WSW Components
Backset Spacing	0.189" (4.80mm)
Connector Style	D-Sub, High Density
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Type	Signal
Flange Feature	Mating Side, Female Screwlock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	26
Number of Rows	3
Shell Size, Connector Layout	2 (DA, A) High Density
Termination	Solder
