| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

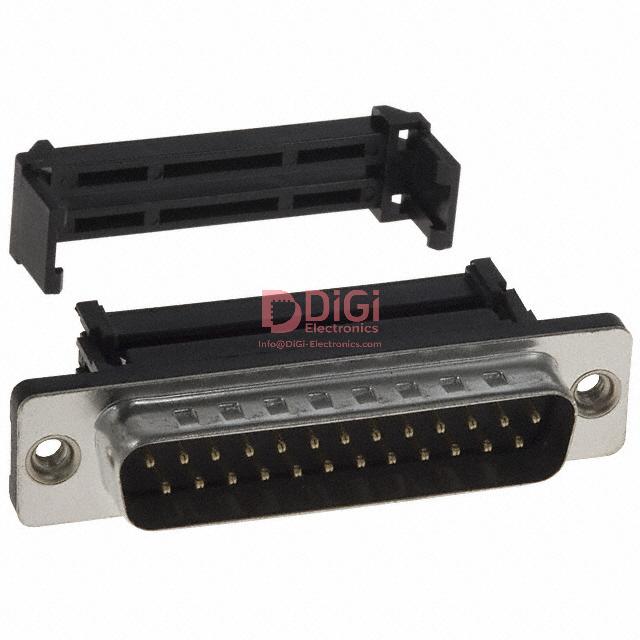

This D-Sub connector assembly from Assmann WSW Components, part number A-DSF 25 LPIII/Z-UNC, is a 25-position plug with male pins. It is designed for IDC termination, making it suitable for ribbon cable applications. The connector features a free-hanging (in-line) mounting type and a shell size of 3 (DB, B).
The shell material is steel with a tin plating finish. The contact type is signal. This component is categorized under D-Sub Connector Assemblies, offering a reliable solution for various interconnect needs. Its robust construction and specific termination style make it a practical choice for integration into electronic systems requiring D-Sub connectivity.
Key specifications include 25 positions across 2 rows, a signal contact type, and a housing/shell flange feature with 4-40 thread size. The termination method is IDC, compatible with ribbon cables. The overall design prioritizes secure connection and ease of integration in an in-line configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector style is D-Sub.
The connector has 25 positions.
The mounting type is free hanging (in-line).
The termination is IDC for ribbon cable.
The shell size is 3 (DB, B).
