Mfr Part #:

A-CSL-S-020-B9-A

Name: A-CSL-S-020-B9-A
Brand: Assmann WSW Components
SKU: A-CSL-S-020-B9-A

Description:

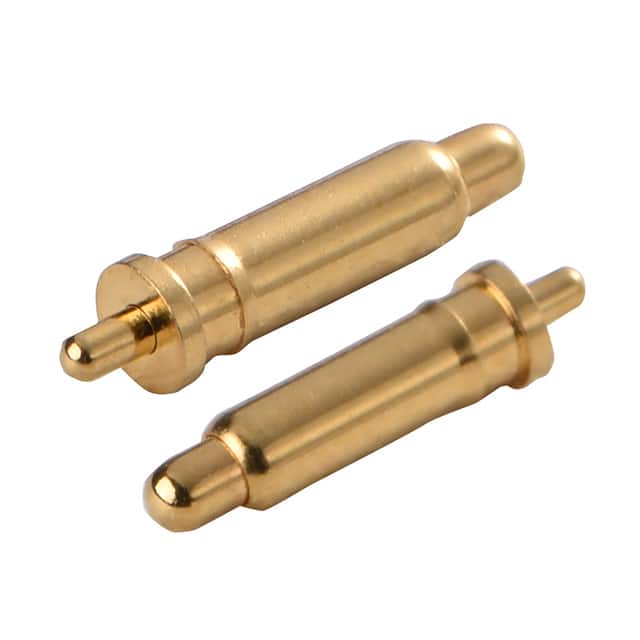

CONN PIN SPRING LOAD 7.569MM AU

Stock on Request

A-CSL-S-020-B9-A Description

Short technical summary and product information.

CONN PIN SPRING LOAD 7.569MM AU

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Contacts, Spring Loaded (Pogo Pins), and Pressure
Manufacturer Name	Assmann WSW Components
Contact Finish	Gold
Contact Finish Thickness	20.0µin (0.51µm)
Contact Material	Brass
Contact Type	Sleeve & Plunger (Pogo Pins)
Mating Cycles	1000000
Maximum Working Height	0.298" (7.57mm)
Minimum Working Height	0.248" (6.30mm)
Mounting Type	Through Hole
Operating Force	60gf
Pad Layout Dimension	Circular - 0.072" (1.83mm) (TH)
Plunger Size	0.042" (1.07mm) Dia
Recommended Working Height	0.270" (6.87mm)
