| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Socket Type | |
| Termination | |
| Termination Style | |
| Type |

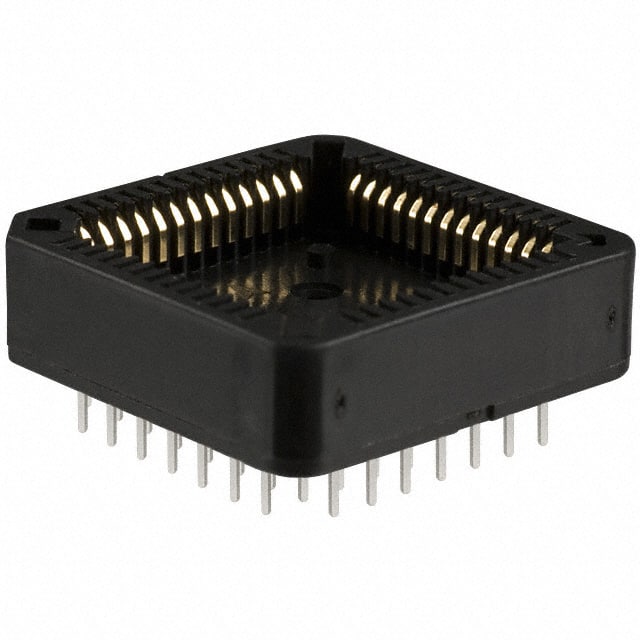

This PLCC socket from Assmann WSW Components is designed for 52-position PLCC packages in a 4x13 grid arrangement. It features a 2.54mm (0.100") pitch and through-hole mounting with solder termination. The contacts are made of phosphor bronze with gold plating, ensuring reliable electrical connections. The housing is constructed from glass-filled PBT, providing durability and thermal stability. The closed frame design protects the contacts and aids in alignment during installation. This socket operates over a wide temperature range of -55°C to 105°C, making it suitable for various industrial and commercial applications. The socket is RoHS compliant (unverified) and REACH unaffected. It is commonly used in applications requiring socketed PLCC ICs for easy replacement or programming.
| Qty | Low | High |
|---|---|---|
| 23+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
52 positions arranged in a 4x13 grid.
2.54mm (0.100").
Through hole with solder termination.
Gold plating on phosphor bronze contacts.
-55°C to 105°C.
Glass-filled polybutylene terephthalate (PBT).
PLCC (Plastic Leaded Chip Carrier) socket.
