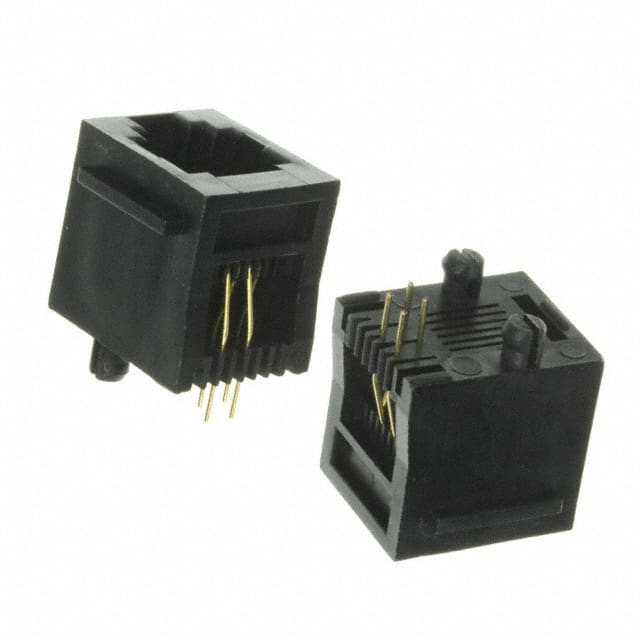

The A-2014-0-4-R is a modular jack connector from Assmann WSW Components. It features a 6P4C (RJ11/RJ14) position configuration with a single port and single row. The connector is unshielded, has a vertical orientation, and is designed for through hole mounting. It includes board lock and panel stops for secure PCB attachment. The tab direction is up.
Electrically, the connector is rated for a maximum current of 1.5 A and a maximum voltage of 120 V AC. It has a dielectric withstanding voltage of 1000 Vrms minimum, insulation resistance of 1000 MΩ minimum, and contact resistance of 20 mΩ maximum. The performance category is Cat 3, suitable for voice and low-speed data applications.
Mechanically, the contacts are made of phosphor bronze with 6µ" gold plating over nickel. The housing is black PBT glass filled with a UL 94V-0 flammability rating. The connector is designed for 500 mating cycles minimum and can withstand a solder temperature of 260°C for 10 seconds maximum. It does not contain an LED or EMI finger.
The component is packaged in a tray and is RoHS compliant as verified by the datasheet. REACH unaffected and MSL 1 Unlimited are reported but unverified.
