| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Performance Category | |
| Shielding | |
| Tab Direction | |
| Termination |

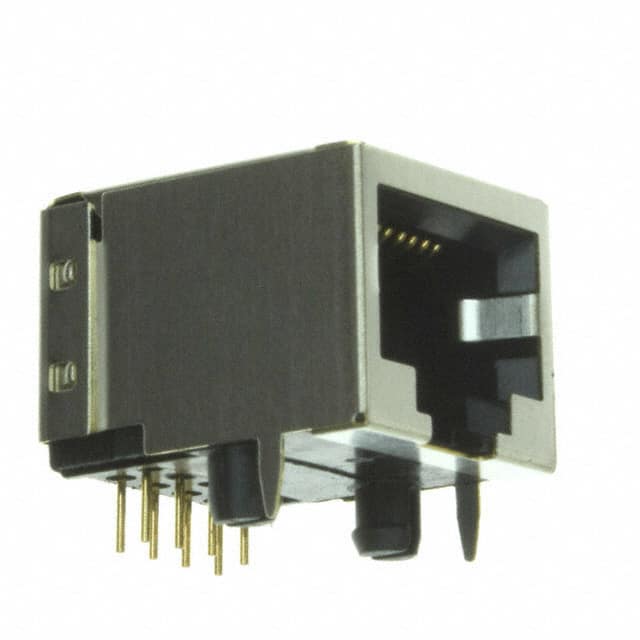

The A-2004-2-4-LPS-N-R is a modular connector jack from Assmann WSW Components, designed for Ethernet applications. It provides 8 contacts (8P8C) and is terminated via solder to a through hole PCB. The right angle (90°) orientation allows for low-profile board edge mounting.
Shielding is included to reduce electromagnetic interference, and the gold plated phosphor bronze contacts ensure reliable connectivity. The connector features a board lock for secure mechanical retention. It is rated for Cat 5 performance, suitable for 100 Mbps Ethernet networks. The tab direction is down, and the housing is black.
This jack is RoHS3 compliant (unverified) and has a MSL of 1. It is designed for single port use and does not contain an LED. The mounting method is through hole, making it compatible with standard PCB assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
| 10+ | $1.75 | $1.75 |
| 25+ | $1.64 | $1.64 |
| 50+ | $1.56 | $1.56 |
| 100+ | $1.49 | $1.49 |
| 300+ | $1.38 | $1.38 |
| 500+ | $1.33 | $1.33 |
| 1,000+ | $1.27 | $1.27 |
| 2,500+ | $1.21 | $1.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8p8c (RJ45, Ethernet).
Through Hole.
90° Angle (Right).
Yes, it is shielded.
Gold.
Cat 5.
Down.
Yes, it includes a board lock feature.
