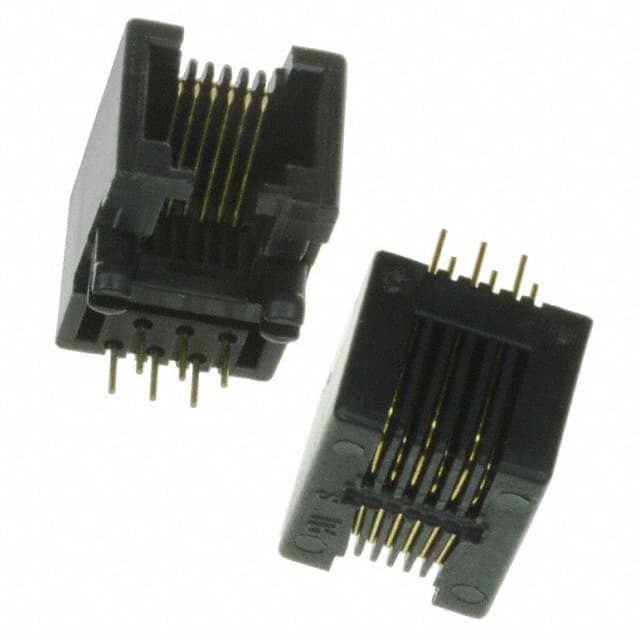

A-2004-1-4-LP-N-R Assmann WSW Components A-2004-1-4-LP-N-R is a 6p6c modular jack with right angle orientation, through hole mounting, and unshielded design. It features gold-plated phosphor bronze contacts and a board lock.
Mfr Part #:

A-2004-1-4-LP-N-R

Available from 1 distributors
Mfr Name: Assmann WSW Components
Assmann WSW Components
Assmann WSW Components A-2004-1-4-LP-N-R is a 6p6c modular jack with right angle orientation, through hole mounting, and unshielded design. It features gold-plated phosphor bronze contacts and a board lock.
✓ Total Stock: 649 pcs

A-2004-1-4-LP-N-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
649 pcs
On Request
649 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

A-2004-1-4-LP-N-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
SVHC Present
Shielding
Tab Direction
Termination
View Similar Products (0)

A-2004-1-4-LP-N-R Description

Short technical summary and product information.

The Assmann WSW Components A-2004-1-4-LP-N-R is a modular connector jack designed for telecommunications and networking applications. It supports 6p6c configurations (RJ11, RJ12, RJ14, RJ25) and is terminated via solder to a through hole PCB.



This jack features a right angle (90°) orientation with the tab facing down, making it suitable for edge-mounted or low-profile designs. The unshielded construction is appropriate for applications where EMI shielding is not required. A board lock feature secures the connector during soldering and use.



Contacts are made of phosphor bronze with a gold finish, ensuring reliable electrical connections and corrosion resistance. The single-port, single-row design simplifies PCB layout and assembly.

A-2004-1-4-LP-N-R Quick Information

Product Type: Modular Connector Jack
Canonical Name: Assmann WSW Components A-2004-1-4-LP-N-R Modular Jack, 6p6c, Right Angle, Through Hole, Unshielded
Subcategory: Modular Connector Jacks

A-2004-1-4-LP-N-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

A-2004-1-4-LP-N-R Features

  • 6p6c modular jack connector.
  • Right angle through hole mounting.
  • Unshielded with board lock feature.
  • Gold-plated phosphor bronze contacts.
  • Tab direction down for secure mating.

A-2004-1-4-LP-N-R Applications

  • Used in telecommunications equipment.
  • Suitable for networking patch panels.
  • Ideal for RJ11/RJ12/RJ14/RJ25 jacks.
  • Applied in low-profile PCB designs.

A-2004-1-4-LP-N-R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of the A-2004-1-4-LP-N-R?

It is a modular jack connector.

How many positions and contacts does this jack have?

It has 6 positions and 6 contacts (6p6c), compatible with RJ11, RJ12, RJ14, and RJ25.

What is the mounting style of this part?

Through hole mounting.

Is the A-2004-1-4-LP-N-R shielded?

No, it is unshielded.

What is the orientation of the connector?

Right angle (90° angle).

What contact finish does this jack use?

Gold contact finish.

Does the connector have a board lock feature?

Yes, it includes a board lock.
