| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
135 pcs
|
135 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Termination | |
| Type |

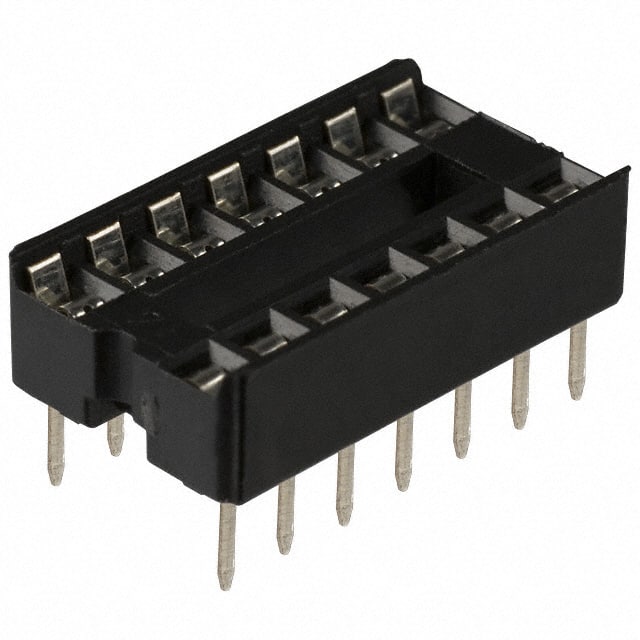

The A 14-LC-TT is a 14-position DIP IC socket from Assmann WSW Components, designed for through-hole mounting on PCBs. It features a 0.3" (7.62mm) row spacing and a 2.54mm (0.100") pitch, making it suitable for standard 14-pin DIP ICs.
The socket uses an open-frame construction with a polybutylene terephthalate (PBT) housing and tin-plated phosphor bronze contacts. It is rated for an operating temperature range of -55°C to 85°C, allowing use in a variety of environments.
Termination is via solder connections, and the socket is RoHS3 compliant and REACH unaffected. The MSL rating is 1 (unlimited), indicating no moisture sensitivity restrictions for storage and handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
| 10+ | $0.46 | $0.46 |
| 34+ | $0.43 | $0.43 |
| 68+ | $0.41 | $0.41 |
| 102+ | $0.39 | $0.39 |
| 272+ | $0.37 | $0.37 |
| 510+ | $0.35 | $0.35 |
| 1,020+ | $0.33 | $0.33 |
| 2,516+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 14 positions arranged as 2 x 7.
Through hole.
Tin.
-55°C to 85°C.
Polybutylene Terephthalate (PBT).
