Mfr Part #:

9926291120

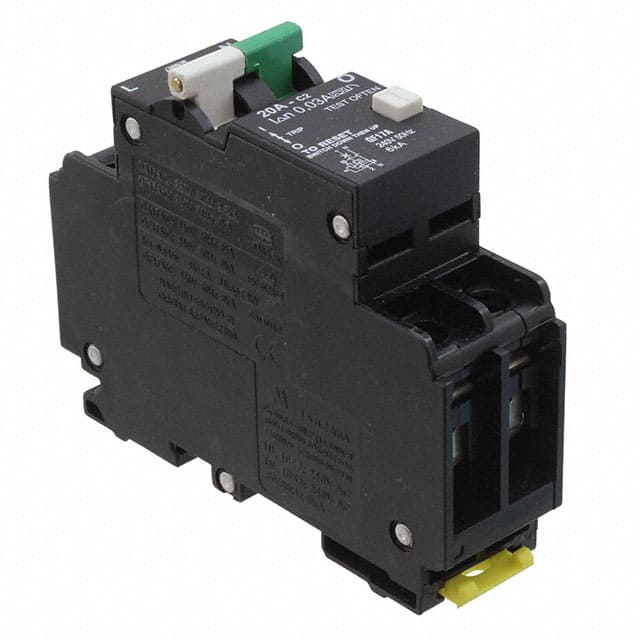

The Weidmüller 9926291120 is a 20A, 240VAC circuit breaker with a magnetic hydraulic delay mechanism. It is designed for DIN rail mounting.

Stock on Request

9926291120 Description

Short technical summary and product information.

This Weidmüller 9926291120 is a single-pole circuit breaker featuring a magnetic hydraulic delay for reliable overload and short-circuit protection. It has a current rating of 20A and a voltage rating of 240VAC, making it suitable for various industrial applications.

The breaker is designed for easy installation on a standard DIN rail, simplifying panel assembly. It is approved by CE, CSA C22.2 No 235, UL1077, and VDE, ensuring compliance with international safety standards.

Key electrical specifications include a 20A current rating and a 240VAC voltage rating. The magnetic hydraulic delay type provides precise tripping characteristics. The actuator type is a lever for manual operation.

This component is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, indicating adherence to environmental regulations.

9926291120 Quick Information

Product Type: Circuit Breaker

Canonical Name: Weidmüller 9926291120 Magnetic Hydraulic Delay Circuit Breaker

Subcategory: Circuit Breaker

9926291120 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

9926291120 Features

20A current rating for load protection.
240VAC voltage rating for power systems.
Magnetic hydraulic delay for reliable tripping.
DIN rail mounting for easy installation.
CE, CSA, UL, VDE approved.

9926291120 Applications

Used in industrial control panels.
Suitable for power distribution circuits.
Protects sensitive electronic loads.
Ensures system safety during overloads.

9926291120 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating?

20 A

What is the voltage rating?

240 V

How many poles does it have?

What type of circuit breaker is it?

Magnetic (Hydraulic Delay)

What is the actuator type?

Lever

What mounting type does it use?

DIN Rail

What approvals does it have?

CE, CSA C22.2 No 235, UL1077, VDE
