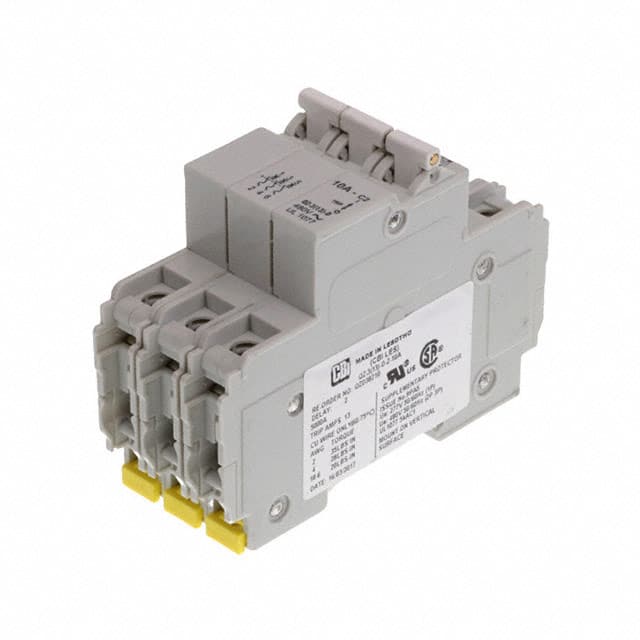

The Weidmüller 9926253510 is a 3-pole circuit breaker from the 9926 Series, utilizing a hydraulic magnetic trip mechanism. It is rated for 10A current and 480VAC voltage, making it suitable for various AC power distribution applications.
Designed for convenience and industrial standards, this breaker features DIN rail mounting, allowing for easy installation in control panels and enclosures. Its robust construction ensures reliable operation and protection against overcurrents.
The breaker operates within a temperature range of -40°C to +65°C and has an interrupting capacity of 10,000A. It also meets several approval standards including CE, CSA C22.2 No 235, UL1077, and VDE.
The current rating is 10A.
The voltage rating is 480VAC.
This circuit breaker has 3 poles.
It uses a hydraulic magnetic trip mechanism.
It is designed for DIN rail mounting.
The operating temperature range is -40°C to +65°C.
The approval agencies are CE, CSA C22.2 No 235, UL1077, and VDE.
