| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Torque | |
| Voltage Rating |

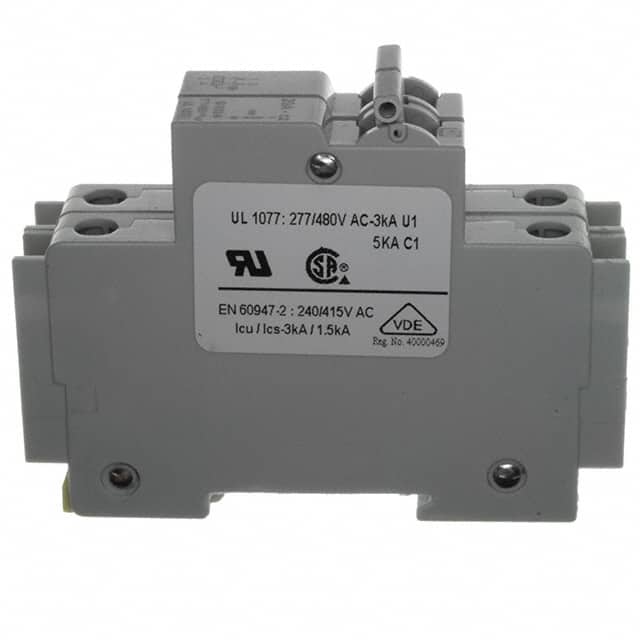

The Weidmüller 9926 Series 9926252520 is a double-pole, branch-rated circuit breaker utilizing a hydraulic magnetic trip mechanism. It is designed for AC applications with a voltage rating of 480V and a current rating of 20A.
This circuit breaker is built for reliable operation and features a lever actuator. It is designed for easy installation on a 35mm DIN rail, making it suitable for various industrial and commercial electrical panel applications. The breaker has an interrupting capacity of 10,000A and an operating life of 10,000 mechanical operations.
Key technical specifications include an operating temperature range of -40°C to +65°C. The unit requires a minimum wire size of 10AWG and has a torque specification of 20 in.-lb. It is approved by CE, CSA C22.2 No 235, UL1077, and VDE.
480VAC.
20A.
10,000A.
-40 to +65°C.
2 poles.
DIN Rail.
CE, CSA C22.2 No 235, UL1077, VDE.
