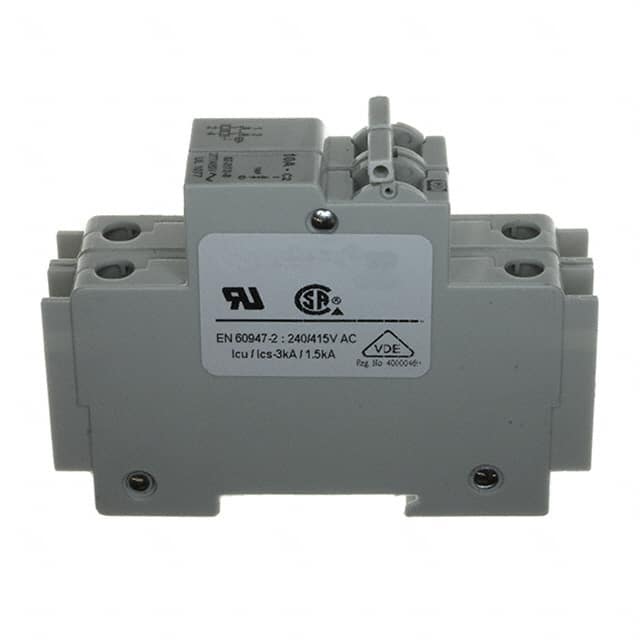

The Weidmüller 9926 Series circuit breaker, part number 9926252510, is a two-pole device designed for AC applications. It operates at a voltage rating of 480V and features a current rating of 10A.
This circuit breaker employs a hydraulic magnetic trip mechanism, offering a trip characteristic similar to thermal magnetic types without requiring de-rating at elevated temperatures. It is designed for DIN rail mounting, making installation convenient in control panels and electrical enclosures.
Key specifications include an interrupting capacity of 10,000A, dielectric strength of 1500V, and insulation resistance of 100MΩ. The operating temperature range is -40°C to +65°C, and it is rated for 10,000 mechanical operations.
Compliance includes CE, CSA C22.2 No. 5-02, and VDE certifications. The wire size accommodation is a minimum of 10AWG for the 20-25A range, and the torque specification is 20 in.-lb.
The current rating is 10A.
The voltage rating is 480V.
It has 2 poles.
It uses a magnetic (hydraulic delay) trip mechanism.
It is designed for DIN rail mounting.
The operating temperature range is -40°C to +65°C.
It is approved by CE, CSA C22.2 No 235, UL1077, and VDE.
