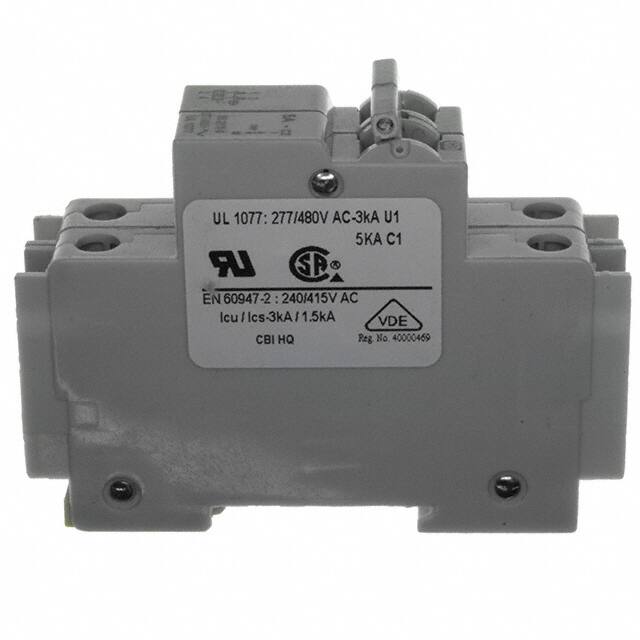

The Weidmüller 9926252505 is a branch-rated circuit breaker from the 9926 Series, utilizing a hydraulic magnetic trip mechanism for AC applications. This model features a 5A current rating and a 480V voltage rating, with a 2-pole configuration.
Key electrical specifications include a 10,000A interrupting capacity, 1500V dielectric strength, and 100MΩ insulation resistance. The operating temperature range is -40°C to +65°C. It is designed for mounting on a 35mm DIN-rail, making installation straightforward in industrial environments.
This circuit breaker is listed to UL 489 standards and complies with CSA C22.2 No. 5-02, CE, and VDE. It is suitable for applications requiring distinction between circuit overloads and short circuits, ensuring reliable circuit protection. The device has a mechanical operating life of 10,000 operations.
It is rated for 120VAC, 240VAC, and 480V operation.
It mounts on a 35mm DIN rail.
-40°C to +65°C.
10,000A at 480VAC.
For 0.5-15A: 14AWG minimum to 10AWG maximum; for 20-25A: 10AWG minimum.
20 in-lb.
2 poles.
