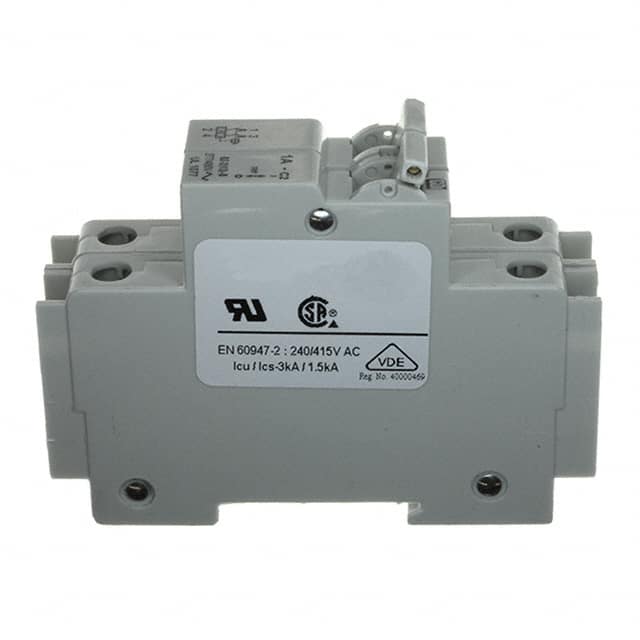

This Weidmüller 9926 Series circuit breaker, part number 9926252501, is a double-pole unit designed for branch circuit protection. It utilizes a magnetic hydraulic delay type mechanism for tripping.
The breaker has a voltage rating of 480 VAC and a current rating of 1A. It is designed for DIN rail mounting, making installation straightforward in control panels and distribution systems. The operating temperature range is -40°C to +65°C.
Key electrical specifications include an interrupting capacity of 10,000A and a dielectric strength of 1500V. The unit is built for 10,000 mechanical operations. Approvals include CE, CSA C22.2 No 235, UL1077, and VDE.
This circuit breaker is suitable for various industrial and commercial applications requiring reliable overcurrent protection. Its compact design and robust construction ensure dependable performance in demanding environments.
The voltage rating is 480 VAC.
The current rating is 1A.
It has 2 poles.
It uses a Magnetic (Hydraulic Delay) breaker type.
The mounting type is DIN Rail.
The operating temperature range is -40°C to +65°C.
The approval agencies are CE, CSA C22.2 No 235, UL1077, and VDE.
