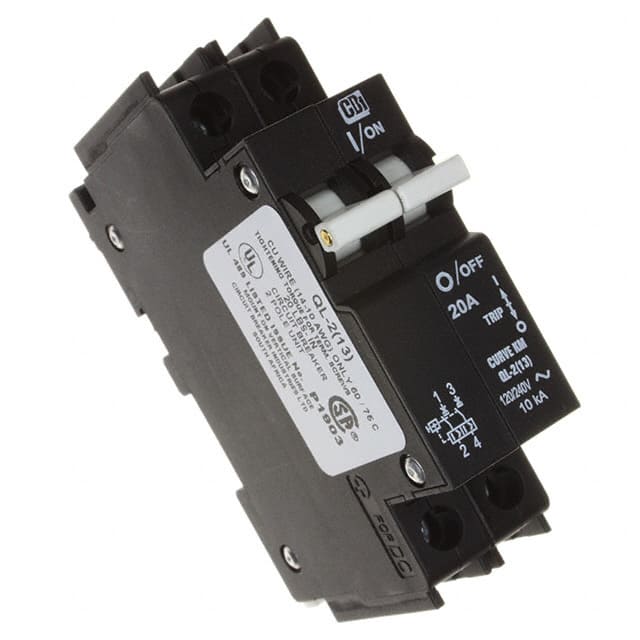

The Weidmüller 9926 Series circuit breaker, part number 9926252020, is a 2-pole device utilizing a hydraulic magnetic trip mechanism. It is rated for a maximum voltage of 240 VAC and a current of 20A.
This breaker features a compact design, measuring just 13 mm wide, and mounts directly onto a 35mm DIN-rail, making it suitable for panel installations. It offers a high interrupting capacity of 10,000A and is approved by UL 489, CSA C22.2 No. 5-02, CE, and VDE.
The operating temperature range for this series is -40°C to +65°C. The breaker has a dielectric strength of 1500V and an insulation resistance of 100MΩ. It is designed for a minimum of 10,000 mechanical operations.
Key specifications include a 20A current rating, 240V voltage rating, and 2 poles. The mounting type is DIN Rail, and the actuator type is a lever. Approvals include CE, CSA, UL, and VDE.
The voltage rating is 240 VAC.
The current rating is 20A.
This circuit breaker has 2 poles.
It uses a magnetic (hydraulic delay) breaker type.
It is designed for DIN rail mounting.
The operating temperature range is -40 to +65°C.
It is approved by CE, CSA C22.2 No 5-02, UL489, and VDE.
