| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Torque | |
| Voltage Rating |

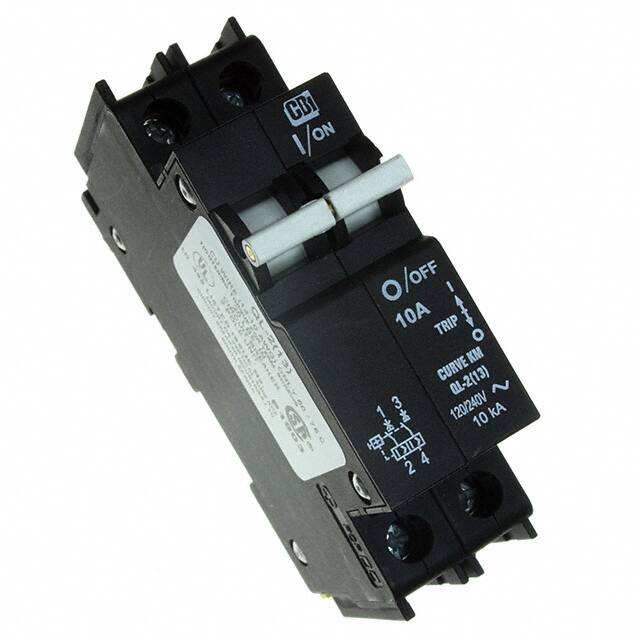

The Weidmüller 9926252010 is a 2-pole hydraulic magnetic circuit breaker from the 9926 Series. It features a current rating of 10A and a voltage rating of 240VAC, making it suitable for various AC power distribution applications.
This circuit breaker is designed for easy installation on a 35mm DIN rail, a common standard in industrial and control panel environments. The hydraulic magnetic trip mechanism provides reliable overcurrent protection. It has an interrupting capacity of 10,000A and an operating temperature range of -40°C to +65°C.
Key approvals include CE, CSA C22.2 No. 5-02, UL489, and VDE, ensuring compliance with international safety standards. The breaker has a mechanical operating life of 10,000 operations and requires specific wire sizes depending on the current rating.
This component is ideal for protecting electrical circuits from overloads and short circuits in applications where reliable and robust protection is required. Its compact design and DIN rail mounting facilitate integration into control panels and electrical enclosures.
The current rating is 10A.
The voltage rating is 240 VAC.
It has 2 poles.
It uses a Magnetic (Hydraulic Delay) mechanism.
It is designed for DIN Rail mounting.
The operating temperature range is -40 to +65 °C.
It is approved by CE, CSA C22.2 No 5-02, UL489, and VDE.
