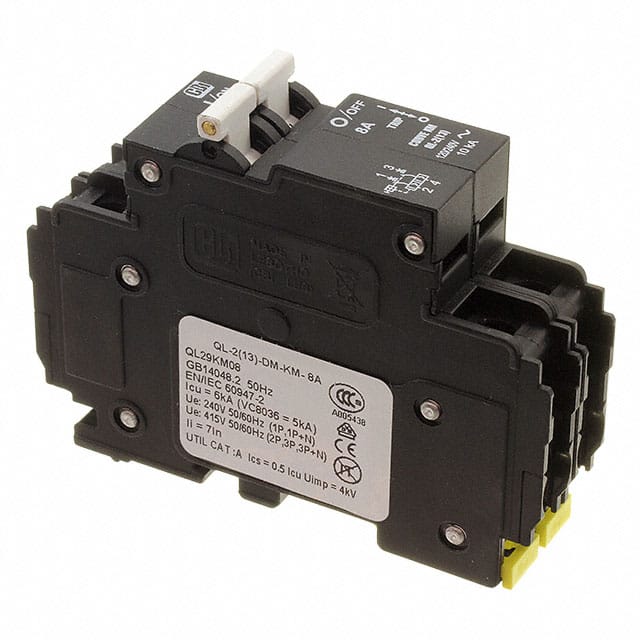

The Weidmüller 9926 Series circuit breaker, part number 9926252008, is a two-pole device designed for AC applications. It operates with a hydraulic magnetic trip mechanism, providing reliable protection.
This breaker has a current rating of 8A and a voltage rating of 240VAC. It features a compact design with a width of 13mm and mounts directly onto a 35mm DIN rail, making it suitable for panel installations.
Key specifications include an interrupting capacity of 10,000A, an operating life of 10,000 mechanical operations, and an operating temperature range of -40°C to +65°C. It is listed with UL 489, CSA C22.2 No. 5-02, CE, and VDE approvals.
The 9926252008 is suitable for various industrial and commercial applications requiring overcurrent protection. Its robust construction and adherence to multiple safety standards ensure dependable performance.
The current rating is 8A.
The voltage rating is 240VAC.
It has 2 poles.
It uses a magnetic (hydraulic delay) trip mechanism.
It is designed for DIN rail mounting.
The operating temperature range is -40°C to +65°C.
It is approved by CE, CSA C22.2 No 235, UL1077, and VDE.
