| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Torque | |
| Voltage Rating |

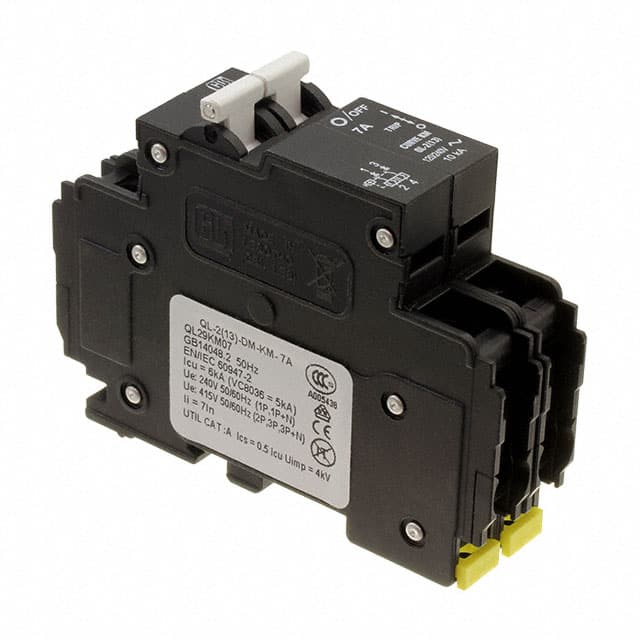

The Weidmüller 9926 Series circuit breaker, part number 9926252007, is a double pole, hydraulic magnetic type designed for AC applications. It features a current rating of 7A and a voltage rating of 240 VAC.
This breaker is built for reliable operation with a hydraulic magnetic trip mechanism, offering a trip characteristic similar to thermal magnetic types without requiring de-rating at elevated temperatures. It mounts directly onto a 35mm DIN-rail, making installation straightforward in control panels and distribution systems.
Key specifications include an interrupting capacity of 10,000A, dielectric strength of 1500V, and an insulation resistance of 100MΩ. The operating life is rated for 10,000 mechanical operations. It operates within an ambient temperature range of -40°C to +65°C.
Compliance includes CE, CSA C22.2 No. 5-02, and VDE certifications. The breaker is suitable for wire sizes ranging from 14AWG to 10AWG depending on the current rating.
The current rating is 7A.
The voltage rating is 240 VAC.
It has 2 poles.
It uses a Magnetic (Hydraulic Delay) trip mechanism.
It is designed for DIN Rail mounting.
The operating temperature range is -40 to +65 °C.
Approval agencies include CE, CSA C22.2 No 235, UL1077, and VDE.
