| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |

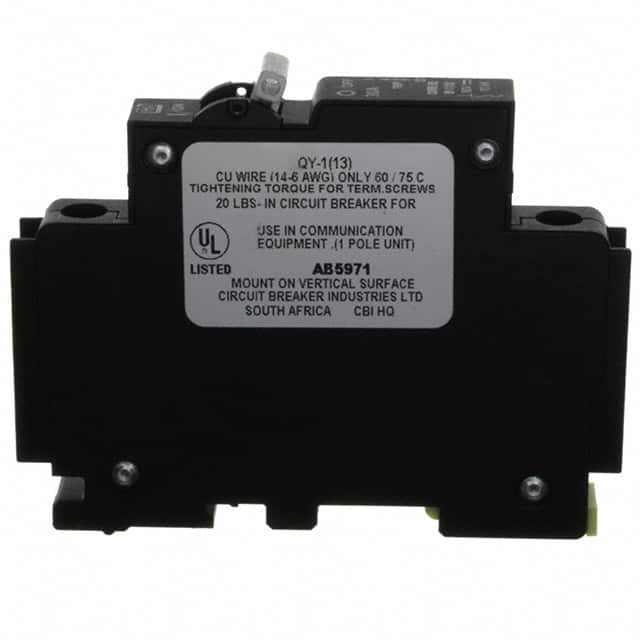

The Weidmüller 9926251930 is a single-pole circuit breaker from the 9926 Series, utilizing a hydraulic magnetic trip mechanism. It is designed for AC and DC applications, with a voltage rating of 80VDC and a current rating of 30A. The breaker offers a 10,000A interrupting capacity and a mechanical operating life of 10,000 cycles.
This circuit breaker is built for reliable protection and features a compact design suitable for industrial and commercial applications. It mounts directly onto a 35mm DIN rail, facilitating easy installation in control panels and distribution systems. The actuator type is a lever for manual operation.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as low confidence. The operating temperature range is from -40°C to +65°C, ensuring performance in various conditions. Approvals include UL489A and VDE.
Key specifications include its 30A current rating, 80VDC voltage rating, and single-pole configuration. The hydraulic magnetic technology provides a specific trip curve characteristic, detailed in the datasheet. This breaker is suitable for applications requiring precise overcurrent protection.
80VDC
30A
Magnetic (Hydraulic Delay)
-40°C to +65°C
10000A
DIN Rail
UL489A and VDE
