| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Torque | |
| Voltage Rating |

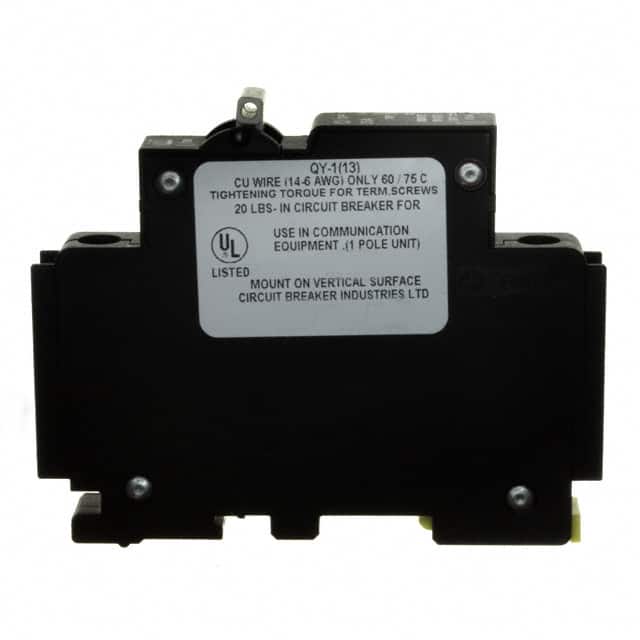

The Weidmüller 9926251925 is a single pole circuit breaker from the 9926 Series, utilizing a hydraulic magnetic trip mechanism. It is rated for a maximum current of 25A and an operating voltage of 80VDC. This breaker is designed for easy installation on a 35mm DIN rail.
Key technical specifications include an interrupting capacity of 10,000A, dielectric strength of 1500V, and insulation resistance of 100MΩ. The operating life is rated for 10,000 mechanical operations. The operating temperature range is -40°C to +65°C.
This circuit breaker is approved by UL489A and VDE, ensuring compliance with relevant industry standards. Its robust construction and reliable tripping characteristics make it suitable for various protection applications where precise current limiting is required.
80 VDC.
25A.
-40°C to +65°C.
Magnetic hydraulic delay circuit breaker.
10,000A.
UL489A and VDE.
DIN rail mount.
