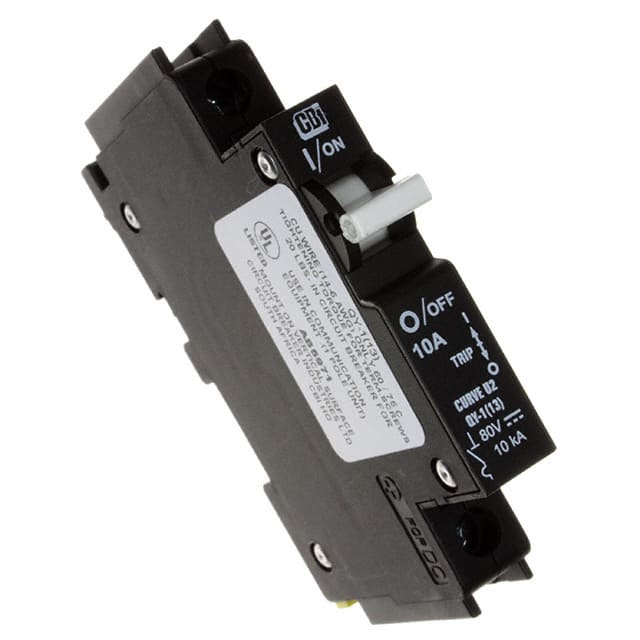

The Weidmüller 9926251910 is a single-pole circuit breaker from the 9926 Series, utilizing a hydraulic magnetic trip mechanism. It is designed for AC and DC applications, with a voltage rating of 80V DC and a current rating of 10A. The breaker offers a 10,000A interrupting capacity and a dielectric strength of 1500V.
This circuit breaker is built for reliable operation and features a mechanical operating life of 10,000 operations. It operates within a temperature range of -40°C to +65°C. The compact design includes a width of 13 mm and mounts directly onto a 35mm DIN rail, making it suitable for space-constrained enclosures.
Key electrical specifications include a 10A current rating and an 80V DC voltage rating. The hydraulic magnetic type ensures consistent tripping characteristics. Approvals include UL489A and VDE, indicating compliance with relevant safety standards.
Designed for industrial and commercial applications, the 9926251910 provides essential overcurrent protection. Its robust construction and adherence to standards make it a reliable choice for various electrical systems.
The current rating is 10A.
The voltage rating is 80V DC.
It has a single pole.
It uses a hydraulic magnetic trip mechanism.
It is designed for DIN rail mounting.
The operating temperature range is -40°C to +65°C.
The approval agencies are UL489A and VDE.
