| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Torque | |
| Voltage | |
| Voltage Rating | |
| Width |

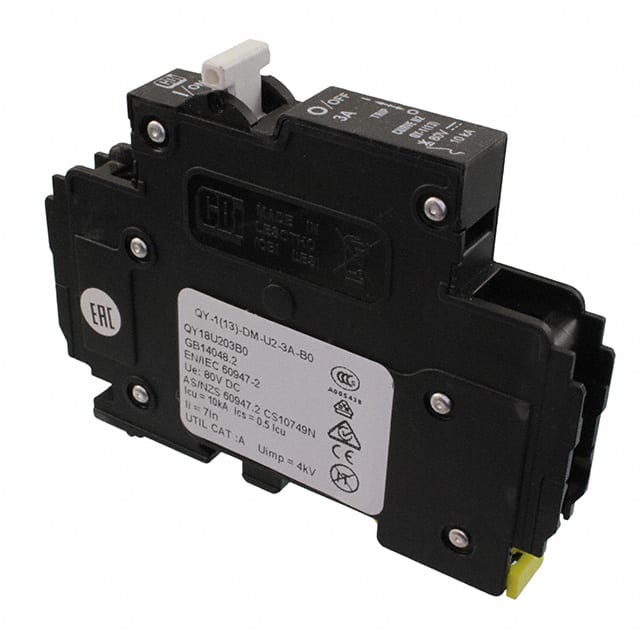

The Weidmüller 9926251903 is a single-pole miniature circuit breaker from the 9926 Series. It operates with a current rating of 3A and a voltage rating of 80VDC, featuring a magnetic-hydraulic delay trip mechanism.
This circuit breaker is designed for easy installation on a 35mm DIN rail and has a lever actuator. It is approved by UL 489, CSA C22.2 No. 5-02, CE, and VDE, ensuring compliance with various industry standards.
Key technical specifications include an interrupting capacity of 10,000A, dielectric strength of 1500V, and an insulation resistance of 100MΩ. The operating temperature range is -40°C to +65°C. Wire sizes up to 10AWG can be accommodated.
This component is suitable for applications requiring reliable overcurrent protection in industrial and commercial settings.
It is rated for 80VDC and also for 120/240VAC operation.
The breaker is rated for 3A at 80VDC and up to 25A at 120/240VAC.
10,000A.
-40 to +65°C.
It mounts on 35mm DIN rail.
It is approved to UL489, UL1077, CSA C22.2 No 235 and No. 5-02, CE, and VDE.
Lever actuator.
