| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

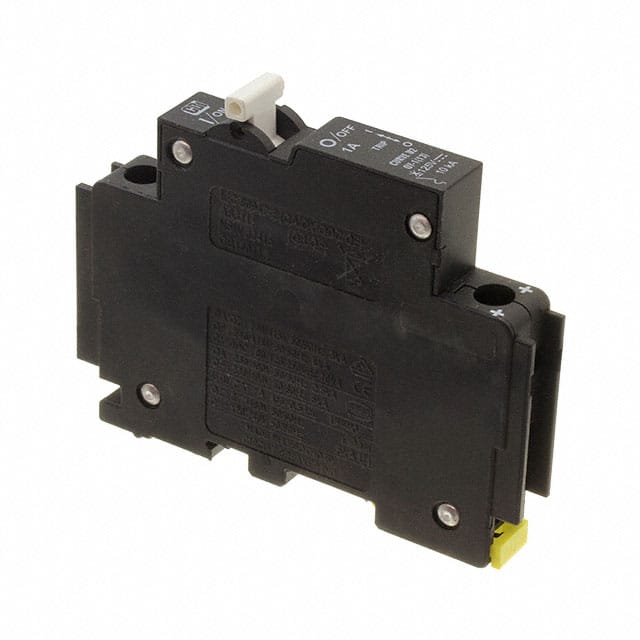

The Weidmüller 9926251801 is a single-pole circuit breaker utilizing a magnetic hydraulic delay mechanism for protection. It is rated for a current of 1A and a voltage of 125VDC, making it suitable for various DC load systems.
This breaker is designed for easy installation on standard DIN rails, simplifying panel assembly. It is approved by CE, CSA C22.2 No 235, UL1077, and VDE, ensuring compliance with relevant safety standards.
The device features a lever actuator for manual ON/OFF control. Its magnetic hydraulic delay characteristic provides selective load protection, responding effectively to overload and short circuit conditions. The unit is built with an integral fail-safe element adjusted to its current rating.
The current rating is 1A.
The voltage rating is 125VDC.
It has 1 pole.
It is a magnetic hydraulic delay circuit breaker.
The actuator type is a lever.
It is mounted on a DIN rail.
It holds approvals from CE, CSA C22.2 No 235, UL1077, and VDE.
