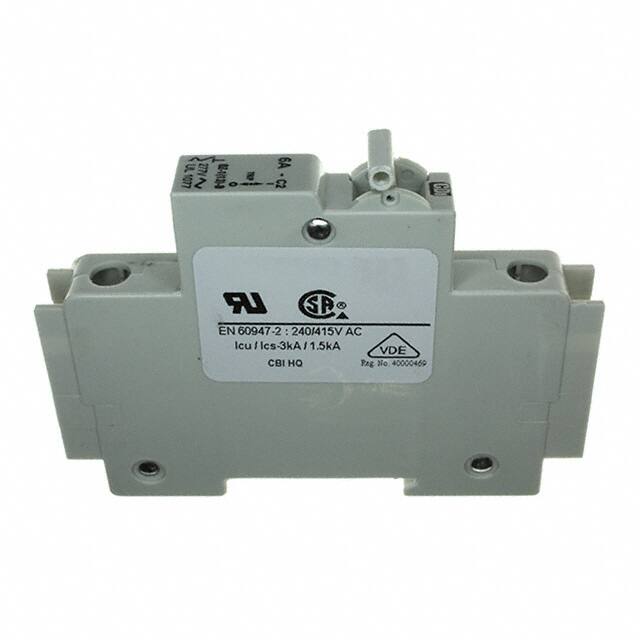

The Weidmüller 9926 Series circuit breaker, part number 9926251506, is a single-pole device designed for AC applications. It operates at a voltage rating of 240 VAC and has a current rating of 6A.
This circuit breaker utilizes a hydraulic magnetic trip mechanism, providing a reliable and consistent tripping characteristic. It is designed for easy installation on a 35mm DIN-rail, making it suitable for various industrial and control panel applications. The breaker has an interrupting capacity of 10,000A and an operating temperature range of -40°C to +65°C.
Key specifications include a dielectric strength of 1500V and an insulation resistance of 100MΩ. The device is built for durability with an operating life of 10,000 mechanical operations. It meets several approval standards, including CE, CSA C22.2 No. 5-02, and VDE.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted with low confidence due to data sourcing.
The current rating is 6A.
The voltage rating is 240 VAC.
It is designed for DIN rail mounting.
It uses a magnetic (hydraulic delay) trip mechanism.
The operating temperature range is -40°C to +65°C.
