| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Frequency | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Torque | |
| Voltage Rating | |
| Width |

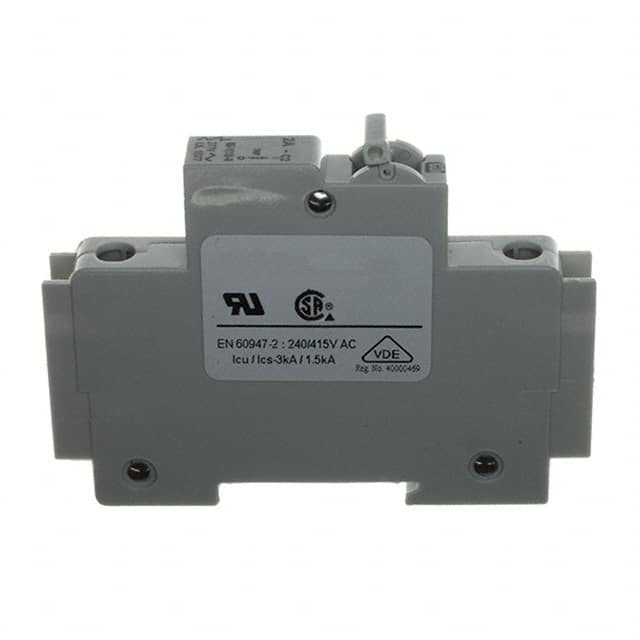

This Weidmüller 9926 Series circuit breaker, part number 9926251502, is a single-pole, branch-rated AC version designed for reliable circuit protection. It operates on a 120/240 VAC, 50/60 Hz system and features a 2A current rating.
The breaker utilizes a hydraulic magnetic trip mechanism, offering a trip characteristic similar to thermal magnetic types without requiring de-rating at elevated temperatures. It has an interrupting capacity of 10,000A and is built for durability with 10,000 mechanical operations.
Designed for easy installation, the 9926251502 mounts directly onto a 35mm DIN-rail and has a compact width of just 13 mm. It is approved by UL 489, CSA C22.2 No. 5-02, CE, and VDE, ensuring compliance with various industry standards.
Key specifications include a voltage rating of 240V, a current rating of 2A, and an operating temperature range of -40°C to +65°C. Wire sizes from 14AWG to 10AWG are supported for connections.
240VAC.
2A.
1 pole.
10,000A.
DIN Rail.
-40°C to +65°C.
14 AWG minimum to 10 AWG maximum.
