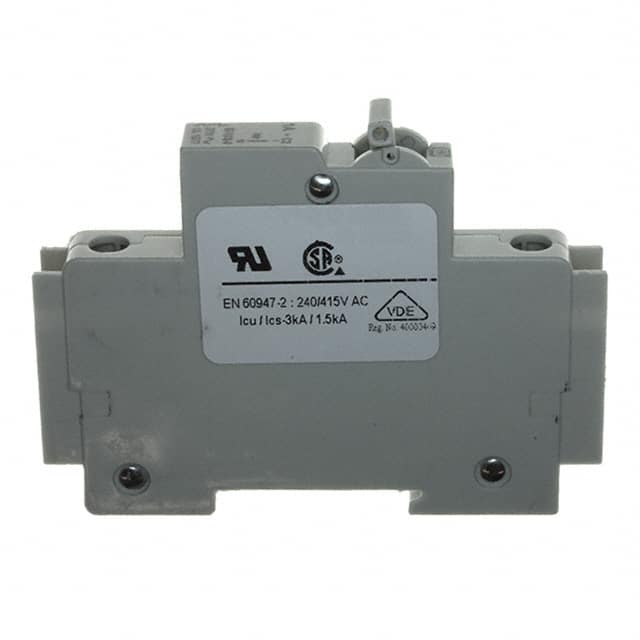

The Weidmüller 9926251501 is a single-pole hydraulic magnetic circuit breaker from the 9926 Series. It is designed for AC applications, with a voltage rating of 240 VAC and a current rating of 1A.
This circuit breaker features a hydraulic magnetic trip mechanism, providing reliable protection. It is built for easy installation with a DIN rail mounting type. The breaker has an interrupting capacity of 10,000A and meets various approval standards including UL489A and VDE.
Key technical specifications include a dielectric strength of 1500V, insulation resistance of 100MΩ, and an operating life of 10,000 mechanical operations. The operating temperature range is -40°C to +65°C. Wire sizes from 10-14 AWG are supported for currents up to 15A.
This component is suitable for applications requiring robust overcurrent protection in a compact form factor, commonly found in industrial and commercial electrical systems.
The current rating is 1A.
The voltage rating is 240 VAC.
It is designed for DIN rail mounting.
It uses a hydraulic magnetic trip mechanism.
The operating temperature range is -40°C to +65°C.
The approval agencies are UL489A and VDE.
