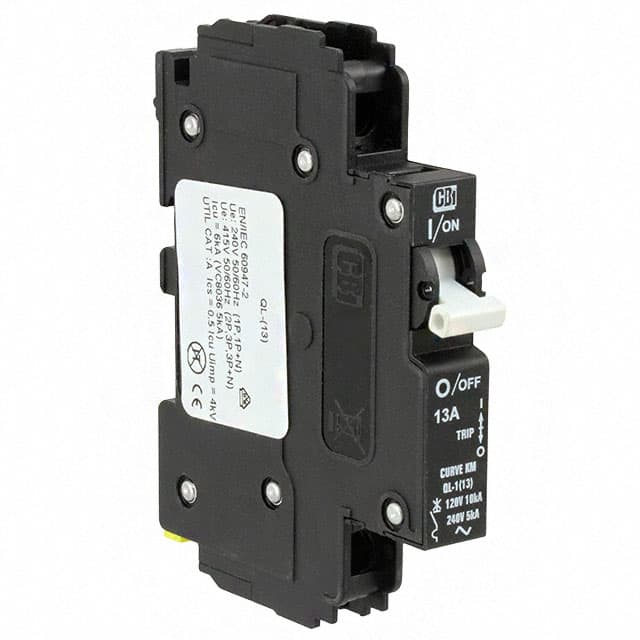

The Weidmüller 9926 Series circuit breaker, part number 9926251013, is a single-pole, hydraulic magnetic type designed for AC applications. It features a current rating of 13A and a voltage rating of 120 VAC, with a 50/60 Hz frequency.
This breaker is built for reliable operation with a hydraulic magnetic trip mechanism, offering a trip characteristic similar to thermal magnetic types without de-rating at elevated temperatures. It mounts conveniently on a 35mm DIN-rail, making it suitable for various industrial and control panel applications. The breaker has an interrupting capacity of 10,000A and meets several approval standards including CE, CSA C22.2 No 235, UL1077, and VDE.
Key specifications include a dielectric strength of 1500V, insulation resistance of 100MΩ, and an operating life of 10,000 mechanical operations. The operating temperature range is -40°C to +65°C. Wire sizes supported are 14-10 AWG for 0.5-15A and 10 AWG minimum for 20-25A, with a recommended torque of 20 in.-lb.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as low confidence due to lack of verification.
The current rating is 13A.
The voltage rating is 120 VAC.
It has a single pole.
It uses a hydraulic magnetic trip mechanism.
It is designed for DIN rail mounting.
The operating temperature range is -40 to +65 °C.
Approval agencies include CE, CSA C22.2 No 235, UL1077, and VDE.
