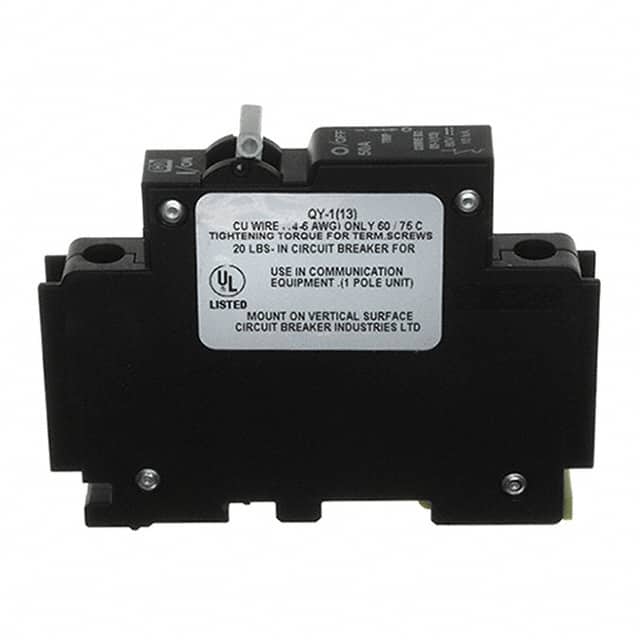

This Weidmüller 9926251001 is a single-pole circuit breaker from the 9926 Series, utilizing a hydraulic magnetic trip mechanism. It is rated for a current of 1A and an operating voltage of 120 VAC at 50/60 Hz.
The breaker features a compact design, measuring just 13 mm wide, and is suitable for mounting on a standard 35mm DIN rail. It offers an interrupting capacity of 10,000A and has undergone testing for dielectric strength and insulation resistance.
Key approvals include UL 489 listed, CSA C22.2 No. 5-02, CE, and VDE, ensuring compliance with various industry standards. The operating temperature range is -40°C to +65°C, and it has a mechanical operating life of 10,000 cycles.
Wire size compatibility ranges from 14AWG minimum to 10AWG maximum for currents between 0.5A and 15A, and 10AWG minimum for 20-25A ratings. Torque specifications are provided for secure connections.
The current rating is 1A.
The voltage rating is 120 VAC.
It is designed for DIN rail mounting.
It uses a hydraulic magnetic trip mechanism.
It is approved by CE, CSA C22.2 No 5-02, UL489, and VDE.
The operating temperature range is -40°C to +65°C.
