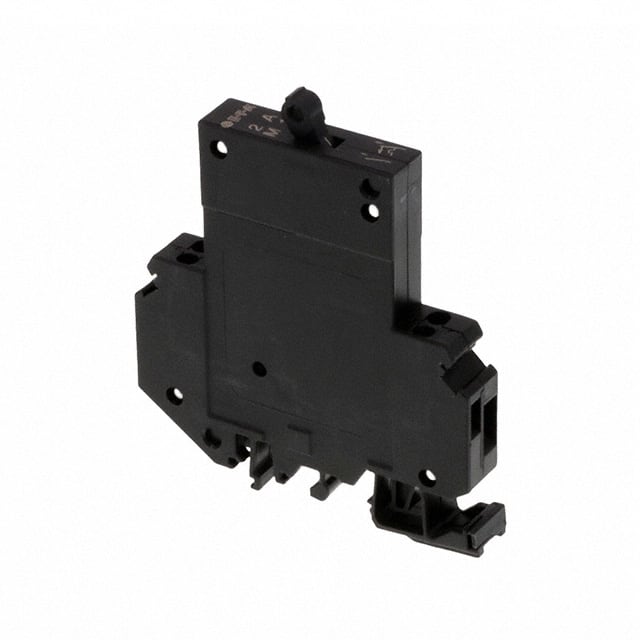

9911200005 The Weidmüller 9911200005 is a single pole, thermal magnetic circuit breaker rated for 2A and 480VAC. It features a lever actuator and DIN rail mounting.
Mfr Part #:

9911200005

Mfr Name: Weidmüller
Weidmüller
The Weidmüller 9911200005 is a single pole, thermal magnetic circuit breaker rated for 2A and 480VAC. It features a lever actuator and DIN rail mounting.
Stock on Request

9911200005 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

9911200005 Description

Short technical summary and product information.

The Weidmüller CB2200 Series 9911200005 is a single-pole circuit breaker designed for reliable overcurrent protection. It utilizes a thermal magnetic tripping mechanism and is rated for a current of 2A and a voltage of 480VAC, with a DC rating of 65VDC.



This circuit breaker features a convenient lever actuator for manual trip and reset operations. It is designed for easy installation, mounting directly onto standard 35mm or 32mm DIN rails. The CB2200 Series is UL 1077 recognized and CSA C22.2 No. 235 compliant, ensuring adherence to safety standards.



Key specifications include a 2A current rating and a 480VAC voltage rating. The breaker is built for durability and performance in various industrial and commercial applications requiring dependable circuit protection.

9911200005 Quick Information

Product Type: Circuit Breaker
Series: CB2200 Series
Canonical Name: Weidmüller CB2200 Series Single Pole Thermal Magnetic Circuit Breaker, 2A, 480VAC
Subcategory: Thermal Magnetic Circuit Breaker

9911200005 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

9911200005 Features

  • Single pole thermal magnetic circuit breaker.
  • Rated for 2A and 480VAC.
  • Lever-switch trip and reset function.
  • Mounts on 35mm or 32mm DIN-rail.
  • UL 1077 recognized and CSA compliant.

9911200005 Applications

  • Provides overcurrent protection.
  • Suitable for industrial applications.
  • Used in control panel assemblies.
  • Ensures equipment safety.
  • Facilitates circuit isolation.

9911200005 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the 9911200005?

2A.

What voltage ratings does the breaker support?

480VAC and 65VDC.

How many poles does it have?

1 pole.

What is the mounting type?

DIN Rail.

What type of actuator does it use?

Lever.

What safety approvals are listed?

CSA C22.2 No 235, UL1077, VDE.
