| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
306 pcs
|
306 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

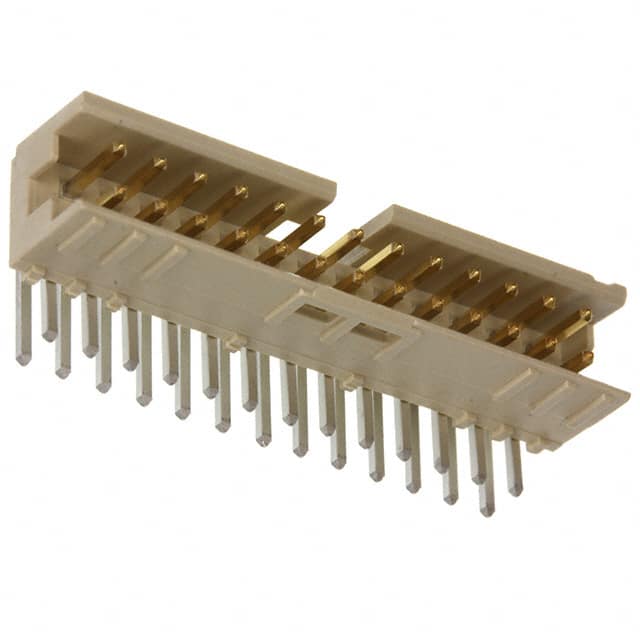

The Amphenol ICC 98464-G61-26ULF is a 26-position male pin header designed for board-to-board or cable applications. It features a 2.00mm pitch and 2 rows, with a 4-wall shrouded housing for robust mating. The header is through hole mounted with a right angle orientation, making it suitable for compact PCB layouts. Contacts are made of copper alloy with a tin finish (30µin) and are rated for 2A AC/DC at 200V AC/DC. The insulation is cream-colored thermoplastic with a UL94 V-0 flammability rating. A latch holder fastening type and keying slot ensure secure and polarized connections.
It has 26 positions, all loaded, in 2 rows.
The pitch is 2.00mm (0.079 inches).
The current rating is 2A (AC/DC).
The voltage rating is 200V (AC/DC).
It uses through hole, right angle mounting with solder termination.
Yes, it is a shrouded - 4 wall header with a latch holder fastening type.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
