| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Switch Type | |
| Termination Style | |
| Voltage Rating | |
| Washable |

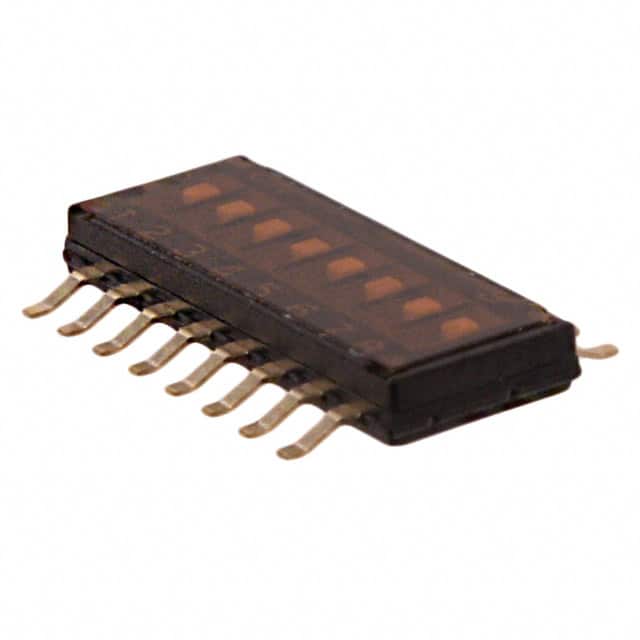

The Grayhill Inc. 97R08ST is a half-pitch DIP switch with 8 positions and SPST circuitry. It is rated for 25mA at 24VDC and features gold-plated copper alloy contacts. The switch has a pitch of 1.27mm (0.050") and a gull wing termination style, making it suitable for surface mount applications.
This DIP switch operates within a temperature range of -40°C to 85°C and is washable. It has a mechanical life cycle rating of 1,000 actuations. The actuator level is flush and recessed, with a standard slide actuator type.
Key specifications include a voltage rating of 24VDC and a current rating of 25mA. The height above the board is 0.061" (1.55mm). The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 97R08ST DIP switch features SPST circuitry.
The 97R08ST DIP switch has 8 positions.
The 97R08ST DIP switch is rated for 25mA at 24VDC.
The operating temperature range for the 97R08ST DIP switch is -40°C to 85°C.
The 97R08ST DIP switch is designed for surface mounting.
The 97R08ST DIP switch is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the 97R08ST DIP switch is 1 Unlimited.
