| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
875 pcs
|
875 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance | |
| Dielectric Material | |
| Dimensions | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| Voltage |

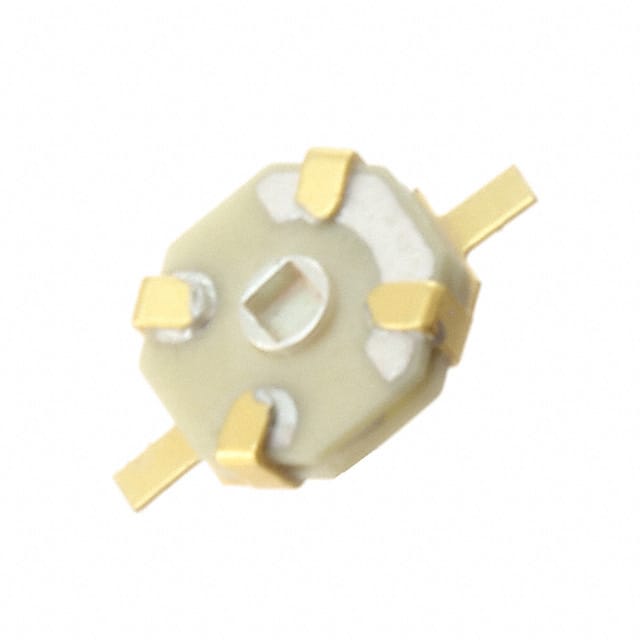

The Johanson Manufacturing 9702-2SL-1R3 is a ceramic trimmer capacitor from the Thin-Trim® series. It offers a capacitance range of 2.5pF to 10pF and is rated for a maximum voltage of 250V.
This component features a surface mount (SMD) package with a top adjustment type. Its dimensions are 3.68mm in diameter and 1.02mm in height. The dielectric material is ceramic, and it operates within a temperature range of -55°C to 125°C. The Q factor is typically 1000 at 100MHz.
Designed for general purpose applications, this trimmer capacitor is suitable for circuits requiring precise capacitance adjustments. Its compact size and surface mount capability make it ideal for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance range is 2.5 to 10 pF.
The rated voltage is 250 V.
The Q factor is 1000 at 100 MHz.
The operating temperature range is -55°C to 125°C.
The package is SMD with surface mount mounting. It is supplied in tape and reel packaging.
The dielectric material is ceramic.
The adjustment type is top adjustment.
