| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Termination Style | |
| Type | |
| Voltage Rating |

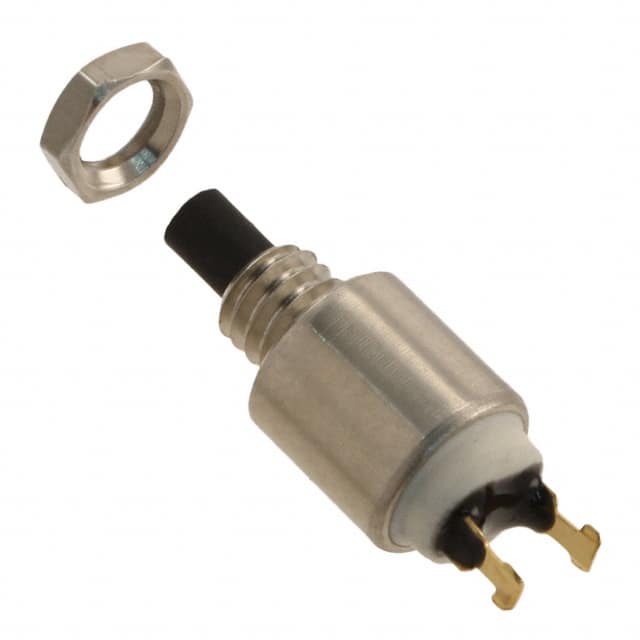

The APEM Inc. 9532CD is a standard pushbutton switch designed for reliable operation. It features a Single Pole Single Throw Normally Closed (SPST-NC) circuit configuration, suitable for various control applications.
This switch is rated for a maximum voltage of 30V DC and a current carrying capacity of 100mA. The operating temperature range is from -30°C to 65°C, ensuring performance in diverse environmental conditions. The actuator is a round plunger type, and the switch is designed for panel mounting with rear termination via solder lugs.
Key mechanical features include a panel cutout diameter of 4.20mm. The terminals are epoxy sealed for enhanced durability and protection against contaminants. The switch is marked with 'No Marking' on the actuator.
Environmental compliance includes RoHS3 compliance and an MSL 1 rating, indicating suitability for a wide range of manufacturing processes. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage of the 9532CD switch is 30 V.
The 9532CD has an SPST-NC circuit configuration.
The switching capacity is 0.1A.
It uses a panel mount rear style.
The operating temperature range is -30°C to 65°C.
The RoHS compliance status is unverified.
