| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ATEX Certificate | |
| CSA Certificate | |
| Color | |
| Depth | |
| Depth (with DIN rail) | |
| End Cover Plate Required | |
| Explosion Tested | |
| Flammability Rating | |
| Height | |
| IECEx Certificate | |
| Installation Advice | |
| Lead Style | |
| Levels Cross-Connected Internally | |
| Marking | |
| Material | |
| Mounting Rail | |
| Mounting Type | |
| N-function | |
| Number of Clamping Points | |
| Number of Levels | |
| Number of Positions | |
| Number of Potentials | |
| Open sides closed | |
| Operating Temperature | |
| PE Connection | |
| PE Function | |
| PEN function | |
| SVHC Present | |
| Standard Package Quantity | |
| Terminal | |
| Termination Style | |
| Tightening Torque (Clamping Screw) | |
| Tightening Torque (Mounting Screw) | |
| Type | |
| Type of Mounting | |
| Weight | |
| Width | |
| Wire Cross Section (mm²) (Maximum @ Maximum) | |
| Wire Cross Section (mm²) (Minimum/Maximum) | |
| Wire Gauge (AWG) (Minimum/Maximum @ CSA) | |
| Wire Gauge (AWG) (Minimum/Maximum @ General) | |
| Wire Gauge or Range |

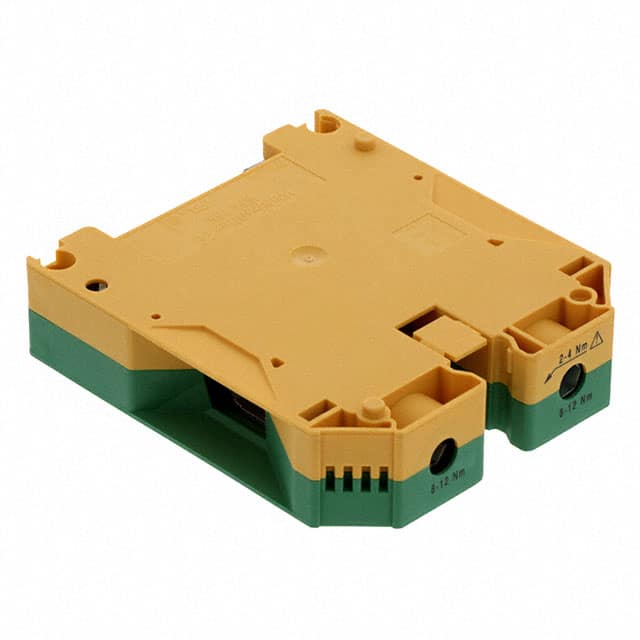

The Weidmüller 9512200000 (WPE 70N/35) is a ground (PE) terminal block designed for DIN rail mounting on TS 35 rails. It features a screw connection with clamping yoke technology (Klippon® Connect) and accepts wire sizes from 10 mm² to 70 mm² (6 AWG to 2/0 AWG). The terminal block is rated for continuous operation from -60°C to 130°C with a flammability rating of UL 94 V-0.
This terminal block provides a single potential with two clamping points for reliable grounding. The green/yellow Wemid housing offers high mechanical strength and electrical insulation. Installation is via a screw-mounted DIN rail, and the end cover plate is not required.
The WPE 70N/35 is certified for explosive environments with ATEX (DEMKO14ATEX1338U) and IECEx (IECEXULD14.0005U) approvals, making it suitable for harsh industrial applications. It also carries CSA certification. The part has PE and PEN functions and is delivered in a standard pack of 10 pieces.
2 clamping points with 1 potential.
TS 35 DIN rail with screwed mounting.
10 mm² to 70 mm² (6 AWG to 2/0 AWG).
-60°C to 130°C continuous.
Yes, ATEX (DEMKO14ATEX1338U) and IECEx (IECEXULD14.0005U).
8-12 Nm for copper conductors.
Wemid, green/yellow, UL 94 V-0 rated.
