| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

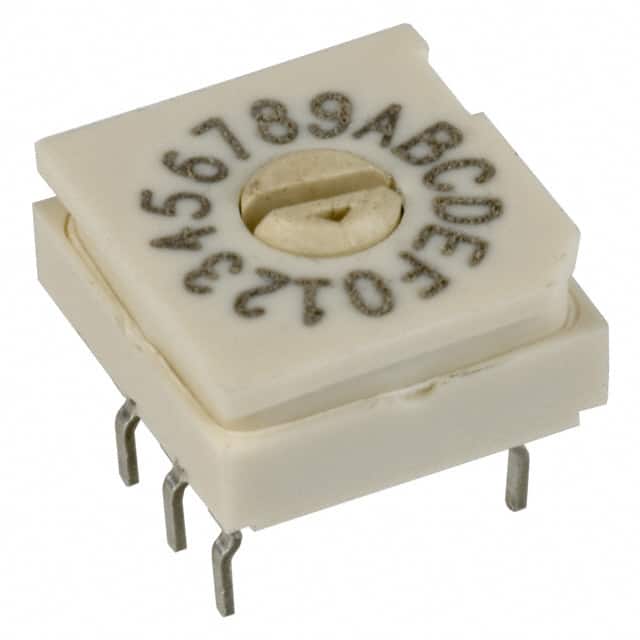

The Grayhill Inc. 94HAB16T is a 16-position rotary DIP switch from the 94H series. This switch offers Hexadecimal circuitry and is suitable for applications requiring a 50VDC voltage rating and 100mA current capacity. It features gold-plated copper alloy contacts and a pitch of 2.54mm.
Designed for Through Hole mounting, the 94HAB16T has an actuator level that can be flush or recessed, with a rotary actuator type operated by a tool. The switch is sealed and washable, operating within a temperature range of -40°C to 85°C. Its mechanical life cycle is rated for 10,000 actuations.
This component is RoHS3 compliant, has an MSL of 1, and is REACH unaffected. The termination style is PC Pin, and it has a height above board of 0.225 inches (5.72mm).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact finish is gold.
It has 16 positions.
-40°C to 85°C.
The mechanical life cycle is 10,000 cycles.
It uses through-hole mounting with PC pins.
