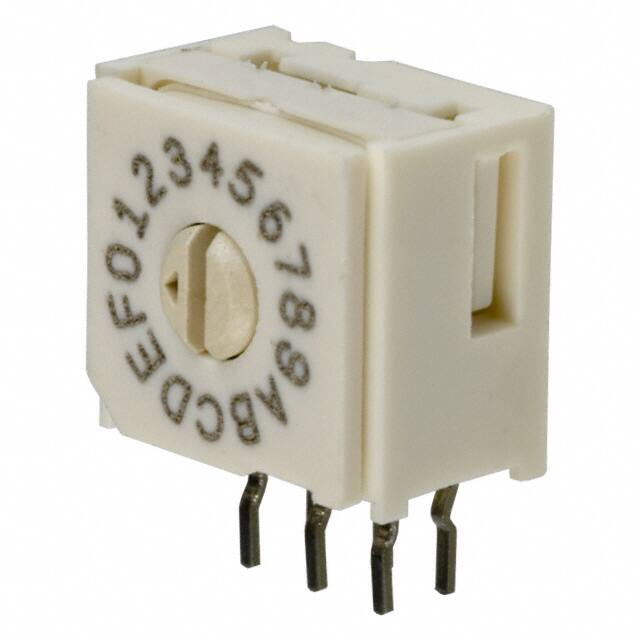

94HAB16RAT The Grayhill Inc. 94HAB16RAT is a rotary DIP switch with Hexadecimal circuitry and 16 positions. It is rated for 50VDC and 100mA.
Mfr Part #:

94HAB16RAT

Available from 1 distributors
Mfr Name: Grayhill Inc.
Grayhill Inc.
The Grayhill Inc. 94HAB16RAT is a rotary DIP switch with Hexadecimal circuitry and 16 positions. It is rated for 50VDC and 100mA.
✓ Total Stock: 24 pcs
$ Price Range: $0.75

94HAB16RAT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

94HAB16RAT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Mounting Type
Number of Positions
Operating Temperature
Pitch
Switch Type
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

94HAB16RAT Description

Short technical summary and product information.

The Grayhill Inc. 94HAB16RAT is a rotary DIP switch from the 94H series. This switch features Hexadecimal circuitry and offers 16 positions.



Designed for reliability, it has a sealed construction and gold-plated copper alloy contacts. The switch is rated for 50VDC and a current of 100mA. Its operating temperature range is -40°C to 85°C.



The 94HAB16RAT is suitable for through-hole mounting with a right-angle configuration. It has a pitch of 2.54mm (0.100") and a height above board of 0.400" (10.16mm). The switch also features a tape seal and a mechanical life rating of 10,000 cycles.



This RoHS3 compliant component is designed for applications requiring precise rotary selection in a compact DIP package.

94HAB16RAT Quick Information

Product Type: Rotary DIP Switch
Series: 94H
Canonical Name: Grayhill Inc. 94H Series Rotary DIP Switch, Hexadecimal, 16 Positions, Through Hole, Right Angle
Subcategory: Rotary DIP Switch

94HAB16RAT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

94HAB16RAT Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

94HAB16RAT Features

  • Rotary DIP switch with 16 positions.
  • Hexadecimal circuitry for precise selection.
  • Rated for 50VDC and 100mA current.
  • Through Hole, Right Angle mounting.
  • Sealed construction for durability.

94HAB16RAT Applications

  • Ideal for control panel configurations.
  • Suitable for test and measurement equipment.
  • Used in industrial automation systems.
  • Applicable in telecommunications hardware.

94HAB16RAT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the 94HAB16RAT rotary DIP switch?

The 94HAB16RAT rotary DIP switch has a voltage rating of 50VDC.

What is the operating temperature range for this Grayhill switch?

The operating temperature range for the 94HAB16RAT is -40°C to 85°C.

What type of circuitry does the 94HAB16RAT use?

The 94HAB16RAT uses Hexadecimal circuitry.

How many positions does the 94HAB16RAT rotary DIP switch have?

The 94HAB16RAT rotary DIP switch has 16 positions.

What are the mounting and termination styles for the 94HAB16RAT?

The 94HAB16RAT features Through Hole, Right Angle mounting and PC Pin termination.

Is the 94HAB16RAT RoHS compliant?

The 94HAB16RAT is RoHS3 Compliant.
